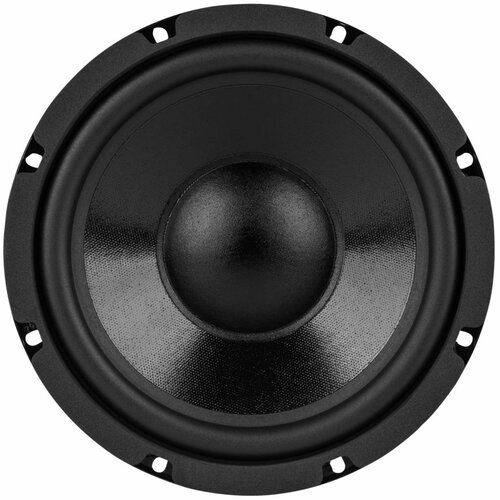

Dayton Audio DCS205-4 Subwoofer 8″
€93.45
The Dayton Audio Classic Series subwoofers offer solid value at lower price points. No compromises were made in the design, materials, or construction of these rugged 4-ohm powerhouses.
10 in stock
Description
Highlights
- Sturdy stamped steel frame
- Vented pole piece and bumped back plate
- Inductance-reducing copper pole piece cap
- Treated non-pressed paper/Kevlar cone with rubber surround
- 4-layer VC with polyimide former
- Great for home and automotive applications
Product details
Dayton Audio DCS205-4 8″ Classic Subwoofer 4 Ohm
The Dayton Audio Classic Series subwoofers offer solid value at lower price points. No compromises were made in the design, materials, or construction of these rugged 4-ohm powerhouses. The drivers feature a vented pole piece with copper cap, bumped back plate for improved excursion capability, Kevlar reinforced cone with rubber half-roll surround, and a high-temperature 4-layer copper voice coil wound on a polyimide former.
Specifications
| Article number | DCS205-4 |
| EAN | 0844632080654 |
| Woofer Series | Dayton Audio Classic series |
| Woofer Type | Subwoofer |
| Nominal Diameter | 8" |
| Power Handling (RMS) | 150 Watts |
| Power Handling (max) | 300 Watts |
| Impedance (Z) | 4 Ω |
| Sensitivity (SPL at 1m / 2.83V) | 88.6 dB |
| Frequency Response | 30 – 200 Hz |
| Voice Coil Diameter | 38.5 mm |
| DC Resistance (Re) | 3.9 Ω |
| Voice Coil Inductance (Le) | 1.78 mH |
| Resonant Frequency (Fs) | 32.3 Hz |
| Mechanical Q (Qms) | 6.28 |
| Electromagnetic Q (Qes) | 0.4 |
| Total Q (Qts) | 0.37 |
| Diaphragm Mass Inc. Airload (Mms) | 57.7g |
| Mechanical Compliance of Suspension (Cms) | 0.42 mm/N |
| Surface Area of Cone (Sd) | 213.8 cm² |
| Volume of Displacement (Vd) | 188.2 cm³ |
| BL Product (BL) | 10.7 Tm |
| Compliance Equivalent Volume (Vas) | 27 liters |
| Maximum Linear Excursion (Xmax) | 8.8 mm |
| Cone / Diaphragm Material | Paper / Kevlar Cone |
| Surround Material | Rubber |
| Voice Coil Wire Material | Copper |
| Voice Coil Former | Kapton® / Polyimide |
| Basket / Frame Material | Steel |
| Magnet Material | Ferrite |
| Overall Outside Diameter | 208 mm |
| Overall Depth | 107.5 mm |
| Baffle Cutout Diameter | 180 mm |
| # Mounting Holes | 8 |
| Mounting Hole Diameter | 5.8 mm |
| Sealed Volume | 0.19 ft.³ |
| Sealed F3 | 78 Hz |
| Vented Volume | 0.48 ft.³ |
| Vented F3 | 48 Hz |
| plus | 4 Layer VC with polyimide former |
| Article number | DCS205-4 |
| EAN | 0844632080654 |
Additional information
| Woofer Series | Dayton Audio Classic series |
|---|---|
| Woofer Type | Subwoofer |
| Nominal Diameter | 8″ |
| Power Handling (RMS) | 150 Watts |
| Power Handling (max) | 300 Watts |
| Impedance (Z) | 4 Ω |
| Sensitivity (SPL at 1m / 2.83V) | 88.6 dB |
| Frequency response | 30 – 200 Hz |
| Voice Coil Diameter | 38.5 mm |
| DC Resistance (Re) | 3.9 Ω |
| Voice Coil Inductance (Le) | 1.78 mH |
| Resonant Frequency (Fs) | 32.3 Hz |
| Mechanical Q (Qms) | 6.28 |
| Electromagnetic Q (Qes) | 0.4 |
| Total Q (Qts) | 0.37 |
| Diaphragm Mass Inc. Airload (Mms) | 57.7g |
| Mechanical Compliance of Suspension (Cms) | 0.42 mm/N |
| Surface Area of Cone (Sd) | 213.8 cm² |
| Volume of Displacement (Vd) | 188.2 cm³ |
| BL Product (BL) | 10.7 Tm |
| Compliance Equivalent Volume (Vas) | 27 Liters |
| Maximum Linear Excursion (Xmax) | 8.8 mm |
| Cone / Diaphragm Material | Paper / Kevlar Cone |
| Surround Material | Rubber |
| Voice Coil Wire Material | Copper |
| Voice Coil Former | Kapton® / Polyimide |
| Basket / Frame Material | Steel |
| Magnet Material | Ferrite |
| Overall Outside Diameter | 208 mm |
| Overall Depth | 107.5 mm |
| Baffle Cutout Diameter | 180 mm |
| # Mounting Holes | 8 |
| Mounting Hole Diameter | 5.8 mm |
| Sealed Volume | 0.19 ft.³ |
| Sealed F3 | 78 Hz |
| Vented Volume | 0.48 ft.³ |
| Vented F3 | 48 Hz |
