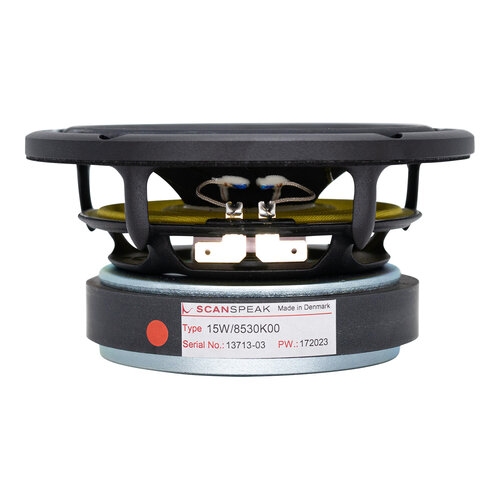

Scan-Speak Revelator 15W/8530K00 5.5” Midwoofer
€199.95
Scan-Speak Discovery 15W/8530K00 5.5″ Midwoofer
14 in stock
Highlights
- Excellent Midrange Performance
- Coated Sliced Paper Cone
- Low loss linear suspension
- SD-1 motor
Product details
The 15W/8530K is a 5 ½” Revelator mid/woofer. It features a non-resonant cone and dust cap structure, dynamic linear suspension, SD-1 magnet system, “Grasshopper” cast chassis with maximized airflow and resonance terminating mounting system. Less resonance in all structures, lower compression and higher linearity, faster termination of excess energy, and higher sound pressure capability make the 15W have more musical and dynamic capability than any other 5 ½” we know of. Wonderful bass in a small box!
The Revelator midrange and midwoofers, both well known for their sliced paper cone technology. The slices are filled with damping glue, which dramatically reduces break-up modes in the diaphragm. In combination with Scan-Speaks low-loss linear suspension and the patented Symmetrical Drive (SD-1) it represented a breakthrough in midrange clarity and overall smooth frequency response characteristics.
Specifications
| Article number | 15W/8530K00 |
| EAN | 0691046949530 |
| Woofer Series | Scan-Speak Revelator series |
| Woofer Type | Midwoofer |
| Nominal Diameter | 5.5'' |
| Power Handling (RMS) | 60 Watts |
| Power Handling (max) | 110 Watts |
| Impedance (Z) | 8 Ω |
| Sensitivity (SPL at 1m / 2.83V) | 86 dB |
| Frequency Response | 39-6.000 Hz |
| Voice Coil Diameter | 38 mm |
| DC Resistance (Re) | 5.85 Ω |
| Voice Coil Inductance (Le) | 0.3 mH |
| Resonant Frequency (Fs) | 39 Hz |
| Mechanical Q (Qms) | 5 |
| Electromagnetic Q (Qes) | 0.43 |
| Total Q (Qts) | 0.39 |
| Diaphragm Mass Inc. Airload (Mms) | 13 g |
| Mechanical Compliance of Suspension (Cms) | 1.27 mn/N |
| Surface Area of Cone (Sd) | 90 cm² |
| BL Product (BL) | 6.6 Tm |
| Compliance Equivalent Volume (Vas) | 16 Liters |
| Maximum Linear Excursion (Xmax) | 6.5 mm |
| Driver's Mechanical Losses (Rms) | 0.64 kg/s |
| Surround Material | Low damping SBR Rubber |
| Magnet Material | Ferrite |
| Overall Outside Diameter | 148 mm |
| Overall Depth | 77 mm |
| Baffle Cutout Diameter | 125 mm |
| # Mounting Holes | 5 |
| Mounting Hole Diameter | 5.3 mm |
| plus | Patended symmetrical drive motor design |
| Article number | 15W/8530K00 |
| EAN | 0691046949530 |
| Woofer Series | Scan-Speak Revelator series |
|---|---|
| Woofer Type | Midwoofer |
| Nominal Diameter | 5.5” |
| Power Handling (RMS) | 60 Watts |
| Power Handling (max) | 110 Watts |
| Impedance (Z) | 8 Ω |
| Sensitivity (SPL at 1m / 2.83V) | 86 dB |
| Frequency response | 39-6.000 Hz |
| Voice Coil Diameter | 38 mm |
| DC Resistance (Re) | 5.85 Ω |
| Voice Coil Inductance (Le) | 0.3 mH |
| Resonant Frequency (Fs) | 39 Hz |
| Mechanical Q (Qms) | 5 |
| Electromagnetic Q (Qes) | 0.43 |
| Total Q (Qts) | 0.39 |
| Diaphragm Mass Inc. Airload (Mms) | 13 g |
| Mechanical Compliance of Suspension (Cms) | 1.27 mn/N |
| Surface Area of Cone (Sd) | 90 cm² |
| BL Product (BL) | 6.6 Tm |
| Compliance Equivalent Volume (Vas) | 16 Liters |
| Maximum Linear Excursion (Xmax) | 6.5 mm |
| Driver's Mechanical Losses (Rms) | 0.64 kg/s |
| Surround Material | Low damping SBR Rubber |
| Magnet Material | Ferrite |
| Overall Outside Diameter | 148 mm |
| Overall Depth | 77 mm |
| Baffle Cutout Diameter | 125 mm |
| # Mounting Holes | 5 |
| Mounting Hole Diameter | 5.3 mm |
