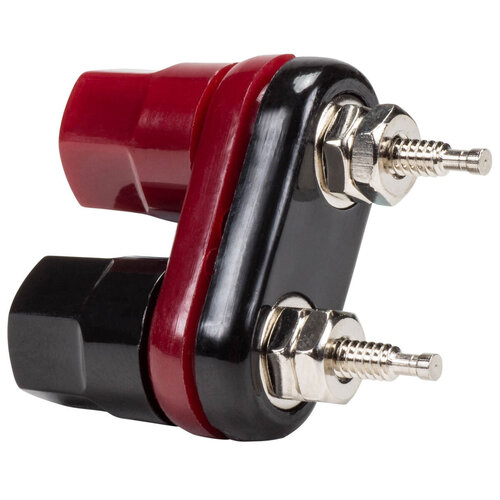

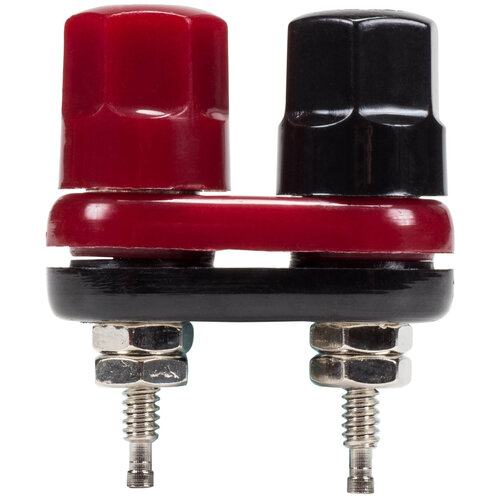

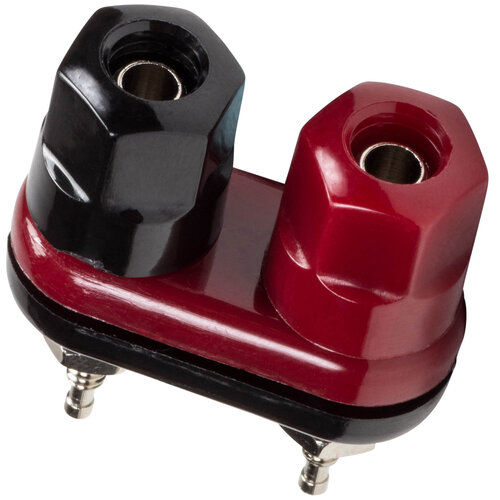

Dual Binding Post 1 Red 1 Black

Highlights

• Designed with Standard 19.1 mm dual binding posts
• Will accommodate a standard dual banana plug, up to 16 gauge wire, and high current spade connectors
• High temperature high impact injection molded plastic.

Product Details

Dual Binding Post 1 Red 1 Black

Standard 19.1 mm dual binding posts made for chassis mounting. Will accommodate a standard dual banana plug, up to 16 gauge wire, and high current spade connectors stacked up to 5 mm high. Front and rear chassis insulators have a slight lip that keeps the conductors centered and from touching the chassis. This unit requires two 12.7 mm holes drilled 19.1 mm on center. Will work on chassis up to 6.35 mm thick. Unit comes with 2 nuts for rear ring or spade connection, or wires can be soldered directly to posts. High temperature high impact injection molded plastic.
