ICEpower 500A Pro Amplifier module

Highlights

• Very rugged design for demanding use
• 500-watts from just 62 cm²
• Soft mute/de-mute
• Standby mode for low power consumption
• Under-voltage protection
• Monitor output
• Balanced input and output
• Excellent EMI performance
• No heat sink required
• Safety: IEC 60065 ed. 8.

Product details

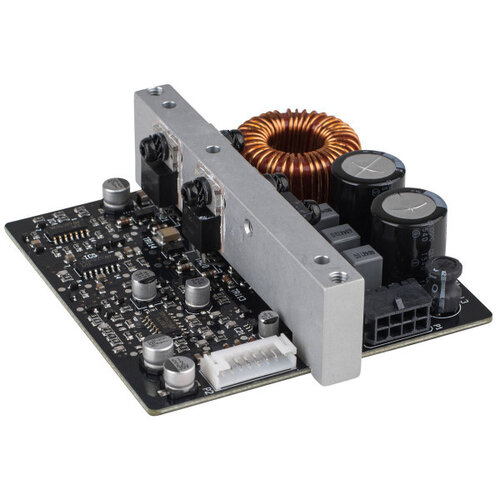

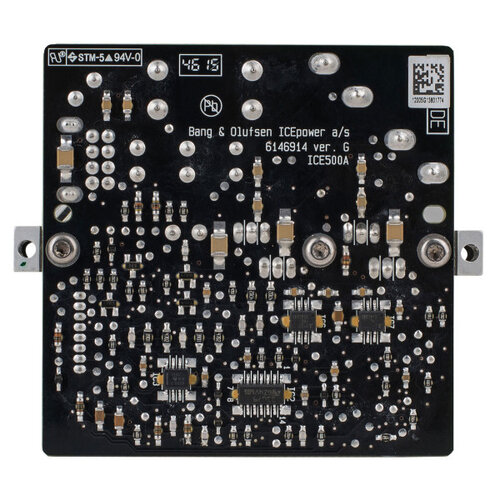

The ICEpower 500A is a high-performance, extremely reliable and versatile amplifier module with a single channel. This is the amplifier from the ICEpower 500ASP module and is capable of 500-watts of output power from just 62 cm². Designed to withstand the demands of professional (live concert) applications, not only in terms of sound quality but also on ruggedness and reliability. The A-series is the answer from our amplifier module category, on the most demanding applications.

The ICEpower 500A achieves extremely high fidelity in a compact package, thanks to state-of-the-art ICEpower® analogue technology. True high-end performance is guaranteed by the patented, proprietary COM-modulation and MECC-control techniques. The turn-key design shortens the time to implement amplification in your end product drastically. The connection interface uses industry-standard Molex Micro-Fit and JST PH-series connectors.

The ICEpower A-Series consists of three high-performance general-purpose class D amplifiers. Check out the 250A and 1000A for the 250 and 1000 watt versions. The A-series modules are essentially the amplifier sections from the ASP-modules. The ASP modules feature an intergraded power supply and have a DC-hanger output to power the A modules. This 500A may be used on its own, powered by a linear power supply, or can be powered from the 500ASP and the 1000ASP creating stereo amplifiers, 2-way and 3-way active speakers.
