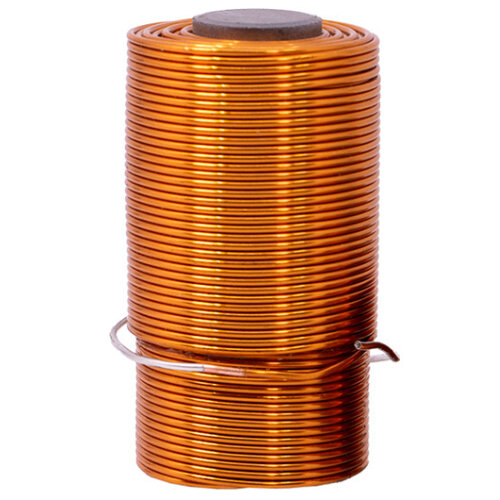

Jantzen Audio 000-2340 | 1,8 mH | 0,293 Ω | 3% | 18 AWG | Iron Core Coil

Highlights

• High-purity 18 AWG copper wire
• Permite core for lower hysteresis
• Low 0.293 Ω DCR for minimal efficiency loss
• 3% inductance tolerance for precise crossover tuning

Product details

Jantzen Audio 000-2340 | 1,8 mH | 0,293 Ω | 3% | 18 AWG | Iron Core Coil

The Jantzen Audio 000-2340 is a meticulously crafted iron core coil perfect for the bass and mid-sections of audio crossovers. This coil features a 1.8 mH inductance with a tight 3% tolerance, ensuring accurate frequency division for high-fidelity sound reproduction. Wound with high-purity 18 AWG copper wire around a Permite core, it achieves an extremely low direct current resistance (DCR) of 0.293 Ω, which preserves the driver’s damping factor and maintains high efficiency. The specialized Permite core material minimizes hysteresis, which is a common issue in ferrite core coils, thus allowing for a more responsive and dynamic audio performance. With a design focused on minimizing losses and maximizing power handling, the Jantzen Audio iron core coil ensures that your speaker’s crossover operates at peak performance, delivering clear and precise audio across the bass and mid frequencies.
