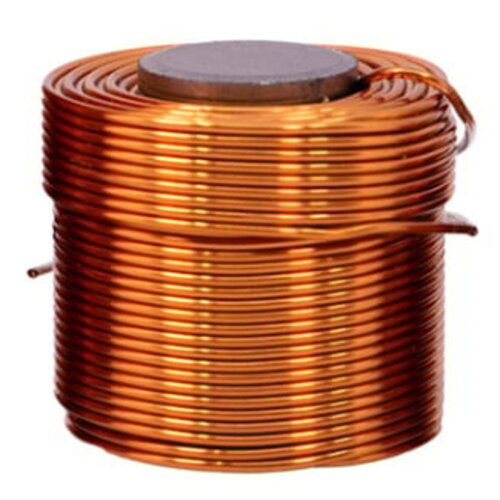

Jantzen Audio 000-2390 | 1,8 mH | 0,33 Ω | 3% | 18 AWG | Iron Core Coil

Highlights

• 1.8mH inductance with a tight 3% tolerance for precise crossover tuning.
• Low 0.33Ω DCR maintains driver efficiency and damping.
• 18 AWG high-purity copper wire for excellent signal integrity.
• Robust iron core design, ideal for bass and mid sections in crossovers.

Product details

Jantzen Audio 000-2390 | 1,8 mH | 0,33 Ω | 3% | 18 AWG | Iron Core Coil

The Jantzen Audio 000-2390 is an iron core coil meticulously crafted for audiophiles and audio engineers focused on achieving precise audio crossover points. With a 1.8mH inductance and a low direct current resistance (DCR) of only 0.33Ω, this component ensures that the damping factor of drivers remains unaffected, thereby preserving the efficiency and natural response of the audio system. The 18 AWG high-purity copper wire wound around a Permite core minimizes energy loss and offers a significant reduction in hysteresis, compared to ferrite core alternatives. This coil is designed with a power handling capability that is finely tuned by balancing core size with wire thickness. The Jantzen Audio 000-2390 is specifically recommended for the bass and mid-sections of speaker crossovers, where it can handle higher power without compromising on sound quality. Its construction and material choice make it an essential component for those who seek audio perfection with no room for compromise.
