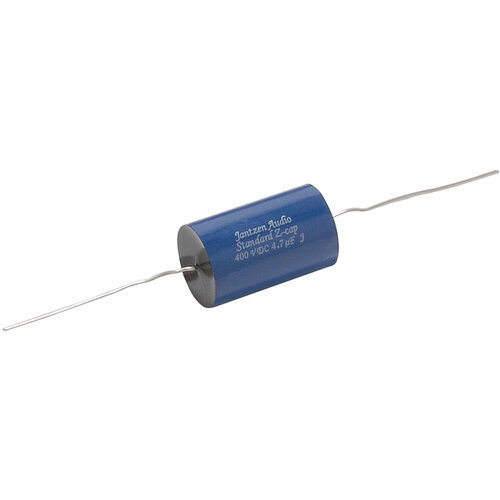

Jantzen Audio 001-0434 | 4,70 µF | 5% | 400 V | Standard Z-Cap
€4.45
The Standard-Z Cap is an entry level audiophile capacitor. They are fast, smooth, detailed and less grainy compared to similar competitor Caps on the world market.
18 in stock
Highlights
- Capacitor foil: Metalized (ZnAl) polypropylene foil
- Dielectric insulation: Polypropylene film
- Terminal leads: PCOCC copper wire
- Signal direction: None (non-polarized capacitor)
- Non inductive construction
Product details
Jantzen Audio 001-0434 | 4,70 µF | 5% | 400 V | Standard Z-Cap
What sets Jantzen Standard Z-Caps aside from their own Cross Caps and other single foil PP caps on the market, is the higher quality German made metallized PP foil and the PCOCC lead-wires. All Jantzen Audio Z-Caps are nitrogen filled, which means that you get more foil per capacitor and no risk of the evaporation that can occur in oil/dielectric fluid filled capacitors.
Standard Z-Caps can be used as power supply capacitors in tube amplifiers. For upgrading coupling capacitors in amplifiers, we recommend our Superior or Silver Z-Caps.
Specifications: Voltage rating: 400 VDC / 250 VAC • Working Temperature Range: – 30C to + 85C • Capacitance tolerance: +/- 5% • Loss factor: 1K 0.00002.
Specifications
| Article number | 001-0434 |
| EAN | 8785256840151 |
| Capacitance (µF) | 4.7 µF |
| Voltage Rating | 400 V |
| Tolerance | 5% |
| Dimensions: Ø * L (mm) | 20 x 31 |
| Termination Style | Axial |
| Working Temperature Range | – 30C to + 85C |
| Capacitance tolerance | +/- 5% |
| Loss factor | 1K 0.00002. |
| Article number | 001-0434 |
| EAN | 8785256840151 |
| Capacitance (µF) | 4.7 µF |
|---|---|
| Voltage Rating | 400 V |
| Tolerance | 5% |
| Dimensions: Ø * L (mm) | 20 x 31 |
| Termination Style | Axial |
| Working Temperature Range | – 30C to + 85C |
| Capacitance tolerance | +/- 5% |
| Loss factor | 1K 0.00002. |
