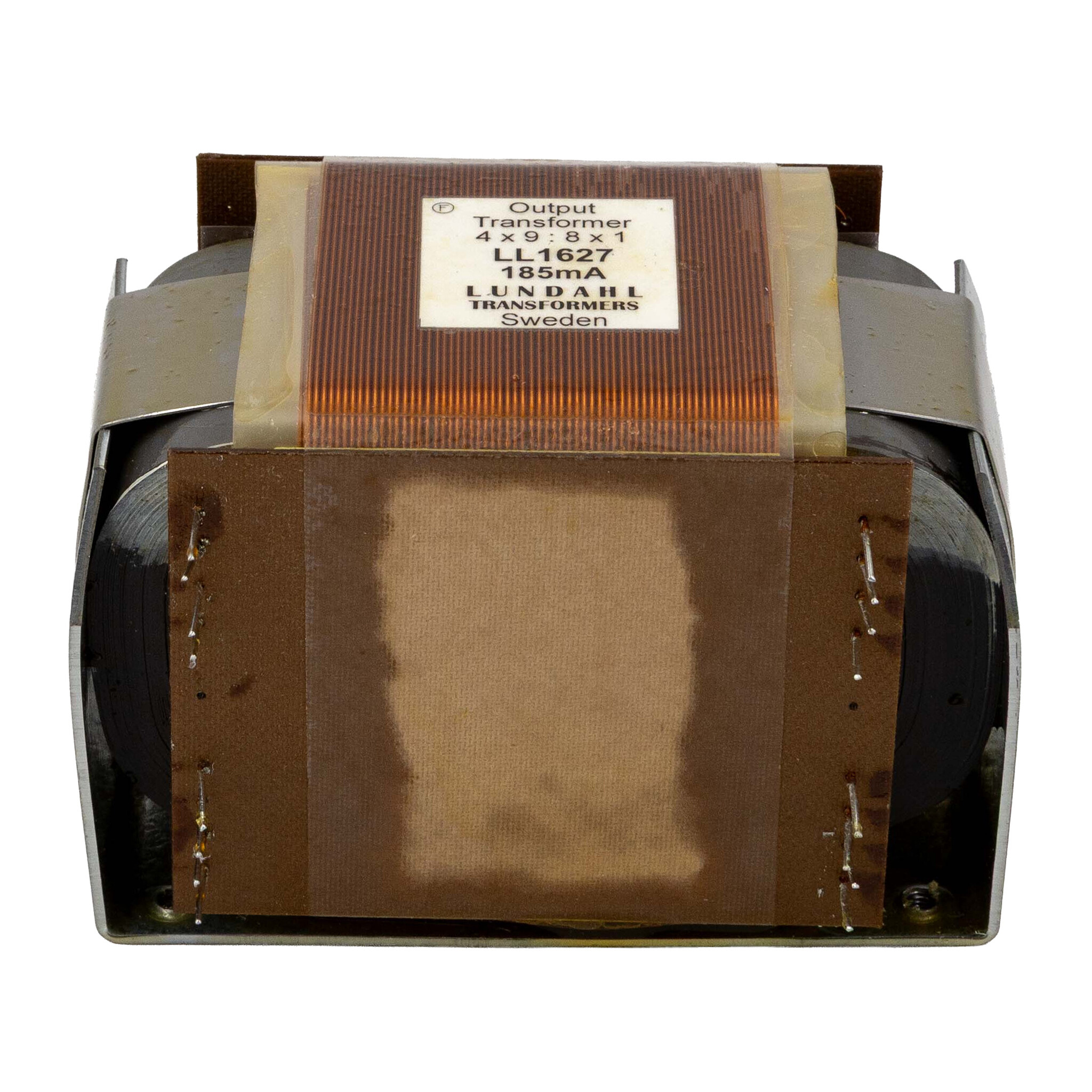

Lundahl LL1627-185 Output Transformer for Tube Amplifiers 185mA
€279.95
Available on backorder
The Lundahl LL1627-185 is an open-frame output transformer for tube amplifiers, built with a gapped audio C-core and designed for 185 mA DC current in single-ended applications.
Highlights of the Lundahl LL1627-185
- Output transformer for tube amplifiers with 185 mA recommended DC operating current
- Special Lundahl audio C-core, air-gapped for single-ended use
- Highly sectioned windings with low leakage inductance and low capacitance winding technique
- Flexible secondary connection options for 4 Ω, 8 Ω and 16 Ω loads
- LL1627 primary load impedance options of 2.3 kΩ, 1.2 kΩ and 0.65 kΩ
- Open-frame construction with 4 x M4 mounting holes and 2.5 kg weight
Product details Lundahl LL1627-185
Lundahl LL1627-185 Output Transformer for Tube Amplifiers 185 mA
The LL1627-185 is designed for tube amplifiers using high-current output stages. The LL1627 type is the low-impedance member of this Lundahl output transformer family, making it suitable where tubes such as the 6C33 require lower primary load impedance and higher current capability.
As a precision audio component, the transformer uses highly sectioned windings with harmonically sized sections to minimize leakage inductance. Combined with Lundahl’s low-capacitance coil winding technique, this supports a wide frequency range and stable performance in demanding tube amplifier circuits.
The LL1627-185 subtype is gapped for 185 mA DC current and has a primary inductance of 9 H at the recommended operating point. Depending on the selected secondary connection for 4 Ω, 8 Ω or 16 Ω speakers, the LL1627 provides primary load impedance alternatives of 2.3 kΩ, 1.2 kΩ and 0.65 kΩ, with transformer copper resistance included.
The open-frame design is intended for mounting inside an amplifier housing. Practical installation details include 5.08 mm pin spacing, 4 x M4 mounting holes and a 2.5 kg transformer weight. Isolation is specified at 3 kV between primary and secondary windings and 1.5 kV between windings and core.
Specifications
| Article number | LL1627-185 |
| EAN | 9507563559217 |
| Transformer Type | Single-ended output transformer for tube amplifiers |
| Primary Voltage | 170 V |
| Secundary Voltage | 40 / 20 / 30 / 15 / 5 / 10 V |
| Primary Impedance | 2.3 / 1.2 / 0.65 kΩ |
| Secundary Impedance | 4 / 8 / 16 Ω |
| Power Handling | 13 / 25 / 50 |
| Core Type | C-core |
| Inductance | 9 H |
| Max Output Voltage | 40 V |
| Turns Ratio | 4 x 8.5 : 8 x 1 |
| Tolerance | +7 % |
| # Mounting holes | 4 |
| Dimensions (L x B x H) | 118 x 90 |
| Weight | 2.5 kg |
|---|---|
| Transformer Type | Single-ended output transformer for tube amplifiers |
| Primary Voltage | 170 V |
| Secundary Voltage | 40 / 20 / 30 / 15 / 5 / 10 V |
| Primary Impedance | 2.3 / 1.2 / 0.65 kΩ |
| Secundary Impedance | 4 / 8 / 16 Ω |
| Power handling | 13 / 25 / 50 |
| Core Type | C-core |
| Inductance | 9 H |
| Max Output Voltage | 40 V |
| Turns Ratio | 4 x 8.5 : 8 x 1 |
| Tolerance | +7 % |
| # Mounting Holes | 4 |
| Dimensions (L x B x H) | 118 x 90 |
