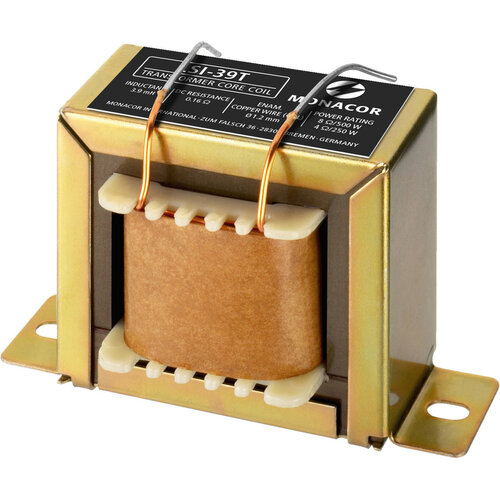

Monacor LSI-39T | 3,9 mH | 0,16 Ω | 5% | 18 AWG | Transformer Coil
€23.45
The Monacor LSI-39T is a high-quality crossover network coil that is specifically designed for use in various PA applications. It is a versatile coil that features a nominal value of 3.9 mH, a power rating of 500 W/250 W, and a DC resistance of 0.16 Ω. The coil is meticulously crafted with enameled copper wire (CUL) that measures 1.2 mm in diameter.
1 in stock
Highlights
- Vacuum-sealed construction
- Nominal value of 3.9 mH
- Power rating of 500 W/250 W
- DC resistance of 0.16 Ω
- Enameled copper wire (CUL) diameter of 1.2 mm
Product details
One of the key features of the Monacor LSI-39T is its unique vacuum-sealed construction. This design helps to minimize distortion and ensures minimal internal resistance. As a result, the coil delivers exceptional performance and is ideal for applications that require high power and low distortion.
The Monacor LSI-39T is a valuable component for a variety of crossover networks. Its versatile nature and high-quality design make it a popular choice for PA systems, studio monitors, and other audio applications.
Specifications
| Article number | LSI-39T |
| EAN | 4007754066876 |
| Coil type | Transformer coils |
| Inductance | 3.9 mH |
| DCR | 0.16 ohms |
| Wire diameter | 18 AWG |
| Article number | LSI-39T |
| EAN | 4007754066876 |
| Coil type | Transformer coils |
|---|---|
| Inductance | 3.9 mH |
| DCR | 0.16 ohms |
| Wire diameter | 18 AWG |
