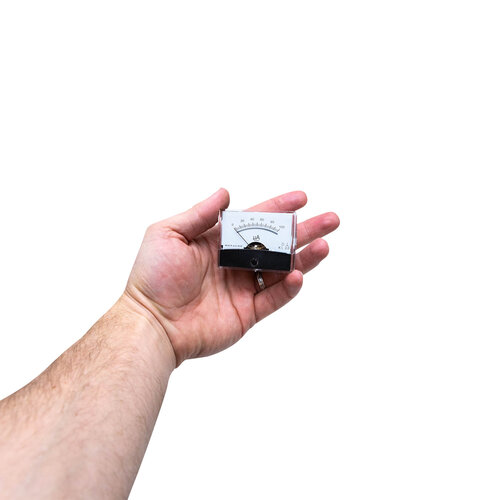

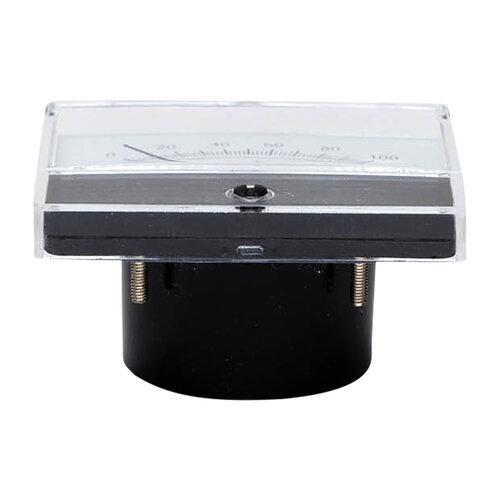

Monacor PM-2/100UA Panel Meter With VU Lettering

Highlights

• With mirror scale
• All-plastic housing
• Quality class 2
• Zero-point correction
• Prewired for illumination
• Measuring range: 0.1 mA

Product details

With mirror scale, all-plastic housing, quality class 2, zero-point correction. The meters are prewired for an illumination. For illumination purposes, these panel meters can subsequently be fitted with two LEDs with series resistor.

Specifications: Measuring range: 100 µA • Internal resistance: 1.0 kΩ • Dimensions display: 60.3 x 46.3 mm • Mounting cutout: Ø 37.5 mm • Mounting depth: 23 mm
