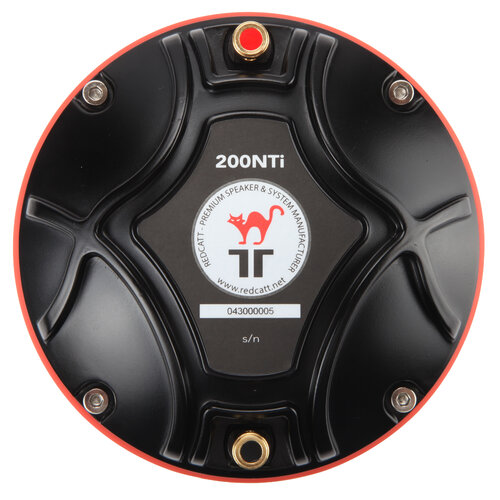

REDCATT 200NTi 3″ Compression driver 8 ohms

Highlights of the REDCATT 200NTi

• 3.0″ high-frequency compression driver with 8 ohm rated impedance
• Neodymium magnetic circuit with ultra high force BL field

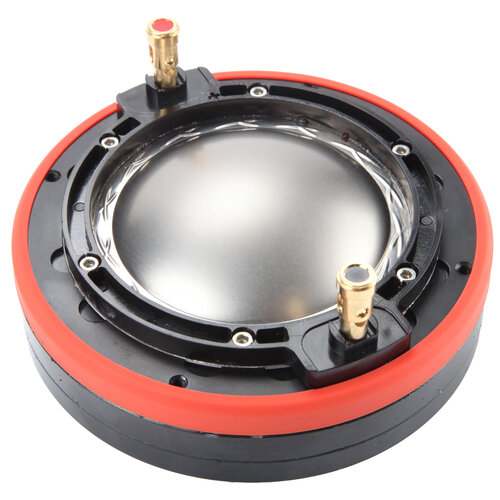

• Pure titanium diaphragm with titanium suspension for resonance control
• CNC-machined aluminum annular phase plug
• 111 dB sensitivity with 100 W AES, 200 W continuous and 400 W peak power handling
• 1.4″ exit throat for professional horn applications

Product details REDCATT 200NTi

REDCATT 200NTi 3.0″ Compression Driver 8 Ohm

The REDCATT 200NTi is built for demanding professional high-frequency use, making it a strong choice for audio components in PA 2-way and 3-way tops, install line arrays and touring mid-high cabinets. Its 1.4″ exit throat supports horn-loaded applications where high output and projection are required.

At the core of the 200NTi is a compact neodymium magnetic circuit designed to deliver a high-force BL field with precise control over the titanium diaphragm assembly. The pure titanium diaphragm and titanium suspension include resonance-control features, helping the driver maintain linear response and clean transient behaviour at high levels.

The driver uses a CNC-machined annular aluminum phase plug made from aircraft-grade material for accurate acoustic alignment. With 111 dB sensitivity, 800 Hz resonant frequency and power handling of 100 W AES, 200 W continuous and 400 W peak, this tweeter-type compression driver is engineered for high SPL performance.

Mechanical details include a 130 mm overall diameter, 102 mm bolt circle diameter, 4 mounting holes and 57 mm depth from flange to rear. The 200NTi weighs 2.90 kg and is suitable for use with compatible horns-waveguides in professional loudspeaker systems.
