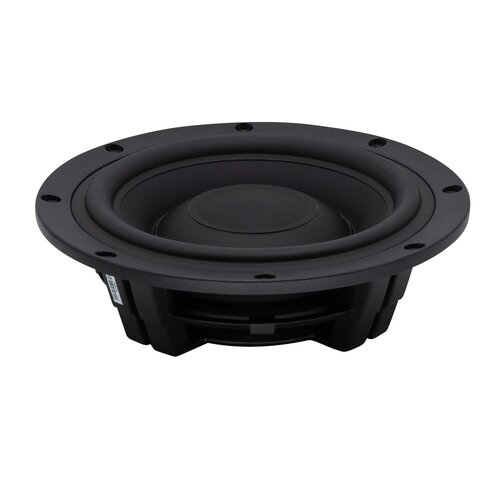

SB Acoustics SW26DBAC-00 10” Passive Radiator
€169.95
SB Acoustics SW26DBAC-00 10” Passive Radiator
2 in stock
Description
Highlights
- Dual rigid aluminum cone structure
- Cast aluminum chassis for optimum strength
- Low damping medium hardness rubber surround for improved dynamic linearity and mechanical stability
- Easily adjustable moving mass
Product details
The SB Acoustics 10″ passive radiator SW26DBAC-00 produces some very good results thanks to its main components: dual rigid aluminum cone structure and cast aluminum chassis that allows optimum strength. The low damping medium hardness rubber surround highly improves dynamic linearity as well as mechanical stability. Easily adjustable moving mass.
Specifications
| Article number | SW26DBAC-00 |
| EAN | 0696277269655 |
| Woofer Type | Passive Radiator |
| Nominal Diameter | 10" |
| Resonant Frequency (Fs) | 13 Hz |
| Mechanical Q (Qms) | 8.8 |
| Diaphragm Mass Inc. Airload (Mms) | 400g |
| Mechanical Compliance of Suspension (Cms) | 0.39 mm/N |
| Surface Area of Cone (Sd) | 312 cm2 |
| Compliance Equivalent Volume (Vas) | 1.9 ft.³ |
| Maximum Linear Excursion (Xmax) | 17 mm |
| Article number | SW26DBAC-00 |
| EAN | 0696277269655 |
Additional information
| Woofer Type | Passive Radiator |
|---|---|
| Nominal Diameter | 10″ |
| Resonant Frequency (Fs) | 13 Hz |
| Mechanical Q (Qms) | 8.8 |
| Diaphragm Mass Inc. Airload (Mms) | 400g |
| Mechanical Compliance of Suspension (Cms) | 0.39 mm/N |
| Surface Area of Cone (Sd) | 312 cm2 |
| Compliance Equivalent Volume (Vas) | 1.9 ft.³ |
| Maximum Linear Excursion (Xmax) | 17 mm |
