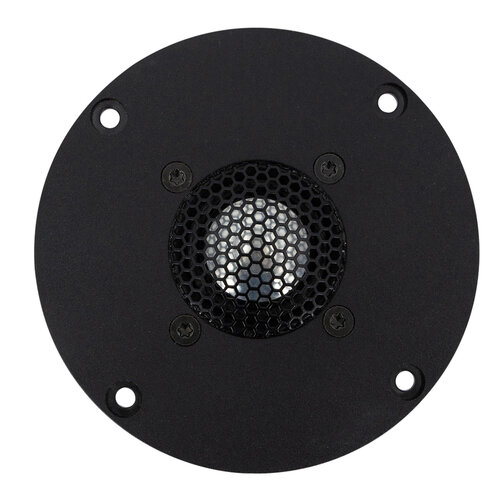

SEAS Prestige 27TBC/G – H1147-06 Dome Tweeter
€76.95
27TBC/G is a High Definition metal dome tweeter with a wide, soft polymer surround and a rear chamber.
Available on backorder
Description
Highlights
- Aluminium Voice coil winding
- No Ferrofuid
- A Sonomax surround is used for low resonance and excellent linearity.
Product Details
SEAS Prestige 27TBC/G – H1147-06 1″ Aluminium Dome Tweeter
The Seas 27TBC/G H1147-06 Tweeter is a High Definition metal dome tweeter with a wide, soft polymer surround and a rear chamber, with a Aluminum/Magnesium alloy diaphragm. A Hexagrid protects the diaphragm. A Hexagrid protects the diaphragm, and supports a phase plate which compensates for a slight axial roll off towards 20 kHz.
Specifications
| Article number | 27TBC/G |
| EAN | 8785256843756 |
| Tweeter Type | Dome tweeter |
| Tweeter Series | Prestige |
| Cone / Dome Diameter | 26 mm | 1" |
| Power Handling (RMS) | 55 W |
| Power Handling (max) | 150 W |
| Impedance (Z) | 6 Ω |
| Sensitivity (SPL at 1m / 2.83V) | 92 dB |
| Frequency Response | 2000-25000 Hz |
| Resonant Frequency (Fs) | 600 Hz |
| DC Resistance (Re) | 4.8 Ω |
| Voice Coil Inductance (Le) | 0.05 mH |
| Overall Outside Diameter | 103.8 mm |
| Cutout Diameter | 73.0 mm |
| Depth | 39.0 mm |
| Diaphragm Material | Aluminium |
| Recommended cut frequency | 2000 – 25000 Hz |
| plus | Wide, soft polymer surround and a rear chamber |
| Article number | 27TBC/G |
| EAN | 8785256843756 |
Additional information
| Tweeter Type | Dome tweeter |
|---|---|
| Tweeter Series | Prestige |
| Cone / Dome Diameter | 26 mm | 1″ |
| Power Handling (RMS) | 55 W |
| Power Handling (max) | 150 W |
| Impedance (Z) | 6 Ω |
| Sensitivity (SPL at 1m / 2.83V) | 92 dB |
| Frequency response | 2000-25000 Hz |
| Resonant Frequency (Fs) | 600 Hz |
| DC Resistance (Re) | 4.8 Ω |
| Voice Coil Inductance (Le) | 0.05 mH |
| Overall Outside Diameter | 103.8 mm |
| Cutout Diameter | 73.0 mm |
| Depth | 39.0 mm |
| Diaphragm Material | Aluminium |
| Recommended cut frequency | 2000 – 25000 Hz |
