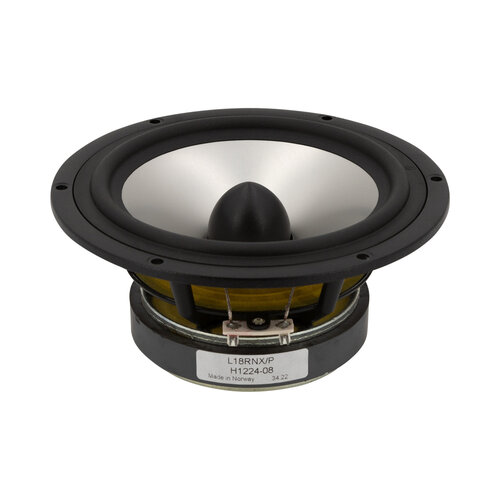

SEAS Prestige L18RNX/P – H1224 7″ Aluminum Cone Woofer
€159.95
L18RNX/P is a 6,5” High Fidelity woofer with an injection molded metal chassis, intended for bass reflex and transmission line designs. Stiff, yet light aluminum cone and low loss rubber surround show no sign of the familiar 500-1500 Hz cone edge resonance and distortion associated with soft cones.
1 in stock
Highlights
- Long term power handling (RMS) is 100 Watts
- Injection molded metal chassis, intended for bass reflex and transmission line designs
- Seas SpiderRing® technology
Product details
The large magnet system gives a good transient response, and the bumped back plate together with the very long, and light weight copper clad aluminum voice coil allow for extreme coil excursion with low distortion.
Extremely stiff and stable injection molded metal basket, keeps the critical components in perfect alignment. Large windows in the basket both above and below the spider reduce sound reflection, air flow noise and cavity resonance to a minimum.
Specifications
| Article number | L18RNX/P |
| EAN | 0696277269938 |
| Woofer Series | SEAS Prestige series |
| Woofer Type | Midwoofer |
| Nominal Diameter | 7" |
| Power Handling (RMS) | 100 Watts |
| Power Handling (max) | 250 Watts |
| Impedance (Z) | 8 ohms |
| Sensitivity (SPL at 1m / 2.83V) | 88 dB |
| Frequency Response | 45 to 3,000 Hz |
| Voice Coil Diameter | 1.54" |
| Magnet Weight | 22.6 oz. |
| DC Resistance (Re) | 5.8 ohms |
| Voice Coil Inductance (Le) | 1.06 mH |
| Resonant Frequency (Fs) | 36 Hz |
| Mechanical Q (Qms) | 2.09 |
| Electromagnetic Q (Qes) | 0.36 |
| Total Q (Qts) | 0.31 |
| Diaphragm Mass Inc. Airload (Mms) | 13.6g |
| Mechanical Compliance of Suspension (Cms) | 1.4 mm/N |
| Compliance Equivalent Volume (Vas) | 0.88 ft.³ |
| Maximum Linear Excursion (Xmax) | 6 mm |
| Overall Outside Diameter | 6.93" |
| Overall Depth | 3.28" |
| Baffle Cutout Diameter | 5.72" |
| Bolt Circle Diameter | 6.54" |
| # Mounting Holes | 6 |
| Mounting Hole Diameter | 0.2" |
