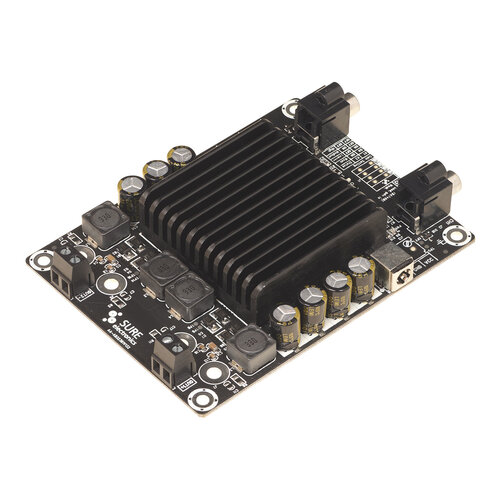

Sure Electronics AA-AB32165 2x25W 6 Ohm TDA7492 Class-D Audio Amplifier Board
€24.95
Choose this 2 x 25 watt amplifier board to power your next speaker project. A Texas Instrument’s Class D TDA7492 amplifier chip is employed to produce high fidelity sound efficiently.
7 in stock
Highlights
- Pre-assembled, pre-tested
- Superb sound quality
- Perfect Class D architecture
- Two channels—each up to 25W
- Up to 90% efficiency
- Does not require a heat sink for most applications
- Line level analog audio input
Product details
Sure Electronics AA-AB32165 2x25W 6 Ohm TDA7492 Class-D Audio Amplifier Board
Tip: Take a look at the table in this blogpost to see which power supply to choose for this product.
This Class D dual channel amplifier board employs a Tripath-style Texas Instruments TDA7492 chip. Each channel is rated at 25W, delivered with state-of-the-art sound quality. The TDA7492’s efficiency eliminates the need for an external heat sink when playing music under average listening conditions. Integration of high-quality capacitors ensures hi-fi amplification output. Requires a DC power supply ranging from 14 to 19 VDC (available separately) and can be used to drive any 4 ohm or 8 ohm passive speakers. Gain control is accomplished by setting two DIP switches, and there are four gain modes available: 24.6 to 26.6 dB, 30.6 to 32.6 dB, 34.1 to 36.1 dB, and 36.6 to 38.6 dB.
Specifications
| Article number | AA-AB32165 |
| EAN | 0844632099205 |
| Rated power output | <p>2 x 20 watts at 8 ohms </br>2 x 25 watts at 6 ohms </p> |
| Minimum load | 4 ohms |
| Efficiency | 87 – 93 % |
| Signal-to-noise ratio (SNR) | 91 dB |
| Distortion | 0.05 % THD at 1 kHz, 6 ohms, 1 watt |
| Frequency response | 20 – 20,000 Hz |
| Gain | <p>20.6 – 22.6 dB</br>26.6 – 28.6 dB </br>30.1 – 32.1 dB</br>32.6 – 34.6 dB</p> |
| Input sensitivity | <p>1.5 V at 22 dB</br>0.7 V at 28 dB </br>0.5 V at 31 dB</br>0.4 V at 34 dB </p> |
| Input impedance | 60k ohms |
| Amplifier Classification | Class D |
| Circuit Topology | STMicroelectronics TDA7492 |
| Speaker output channels | 2 |
| Input connection type | <p>RCA</br>PCB solder connection</p> |
| Speaker output connection type | <p>Screw terminal</br> PCB solder connection</p> |
| DSP function | – |
| Bluetooth | – |
| EQ Adjustment | – |
| Power Requirements | 14 – 19 VDC |
| Power inlet connector | <p>Screw terminal</br> PCB solder connection</p> |
| Current limit | 3.5 A |
| Under/over voltage protection | – |
| Dimensions (L x W x H) | 122 x 91 x 24 mm |
| Mounting hole spacing | 112 x 81 mm |
| Mounting hole diameter | 3.8 mm |
