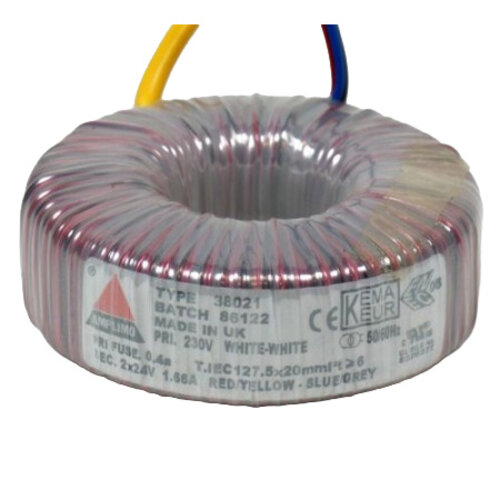

Amplimo 38021 80 VA | 2 x 24 V Toroidal Transformer

Highlights of the Amplimo 38021

• 80 VA toroidal transformer with 230 VAC primary for 50/60 Hz mains
• Dual 24 V secondary windings rated at 1.66 A each
• Secondaries can be used in series for higher voltage or in parallel for higher current
• Supplied with mounting hardware

Product details Amplimo 38021

Amplimo 38021 80 VA | 2 x 24 V Toroidal Transformer

The 38021 is a compact 80 VA toroidal transformer designed for reliable voltage conversion in mains-powered electronics and power supplies. It uses a 230 VAC primary for 50/60 Hz operation and provides two separate 24 V secondary windings, each rated at 1.66 A.

The dual-secondary layout gives you practical wiring flexibility. The secondaries can be connected in series to double the secondary voltage, or in parallel to double the available secondary current, making this transformer suitable for a range of electromechanics and electronics builds where a stable low-voltage AC supply is required.

Installation is straightforward thanks to the included mounting set: one 70 mm metal washer, two 70 mm neoprene washers and an M5 x 40 mm bolt with nut. All leads are solid and approximately 200 mm long, helping simplify internal wiring during assembly.

The transformer measures 91 mm in diameter and 35 mm in height, with a weight of 0.90 kg, excluding mounting materials. It is CE and RoHS compliant, carries KEMA KEUR and ENEC approvals, and also has UL/CSA approvals under UL file number E320377. A time-lag primary fuse of 0.4 A, 5 x 20 mm, IEC127 with high I²t value is specified; no secondary fuse is specified.
