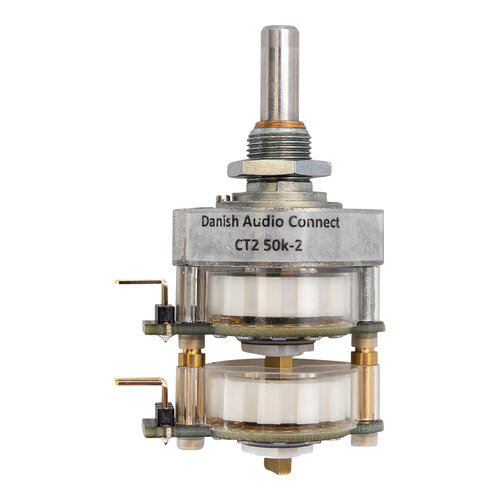

DACT CT2-50k-2 Stereo Audio Attenuator/Volume Control 50k Ohm 2 wafers
€229.95
The CT2-50k-2 features a gold-plated signal path, which helps to prevent corrosion and improve durability. The attenuator is also very compact, making it easy to mount in most existing audio amplifiers.
3 in stock
Highlights
- 24-position stepped attenuator with 60dB attenuation range
- Series resistor network of 23 non-inductive, low noise, SMD metal film resistors
- Gold-plated signal path

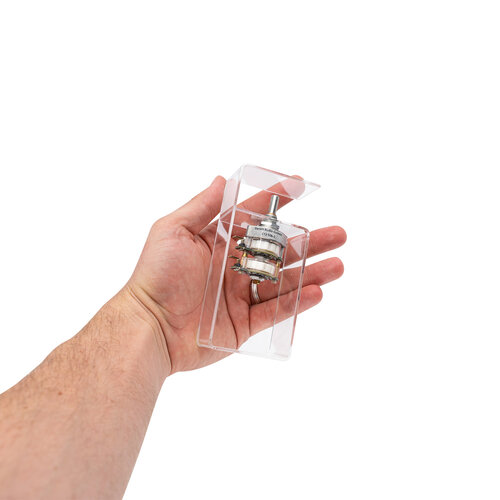

- Compact design
- Suitable for audiophile and professional applications
Product details
DACT CT2-50k-2 Stereo Audio Attenuator/Volume Control 50k Ohm 2 wafers
The CT2-50k-2 features a 24-position stepped attenuator with a 60dB attenuation range. It uses a series resistor network of 23 non-inductive, low noise, SMD metal film resistors. The layout of the PCB boards and the choice of SMD resistors have reduced the signal path to a minimum length (typically five times shorter than conventional stepped attenuator designs with leaded resistors). This results in a very low series inductance and very low stray capacitance, which improves the sonic quality of the attenuator.
Specifications
| Article number | CT2-50k-2 |
| EAN | 8785256856107 |
| Article number | CT2-50k-2 |
| EAN | 8785256856107 |
