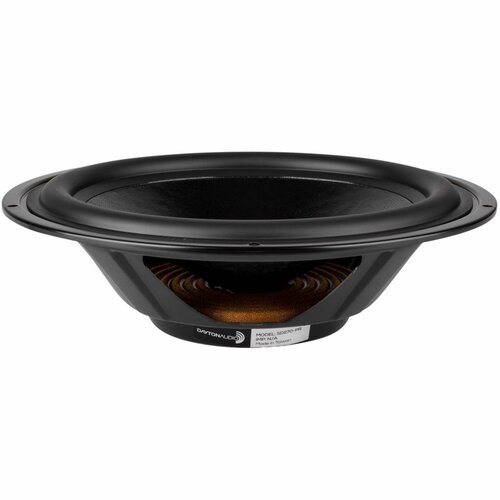

Dayton Audio DS270-PR 10″ Passive Radiator
€49.95
The Dayton Audio Passive Radiators are excellent general-purpose passives suitable for replacement or for new construction.
Available on backorder
Product details
Dayton Audio DS270-PR 10″ Passive Radiator
The Dayton Audio Passive Radiators are excellent general-purpose passives suitable for replacement or for new construction. A built-in mass disc offers a good starting point for most designs, and a convenient M5 threaded hole (screw included) allows different types of weights to be added if desired. Cosmetically and mechanically, the passives match the Shielded DVC line of subwoofers, with a poly coated paper cone and medium-roll rubber surround for clean excursion and long life. The possibilities with these passives are endless, from floor standing two-ways to small active/passive subwoofer systems.
Tip: As a general rule the passive radiator(s) should be able to move double the volume of air as the active woofer(s)/subwoofer(s) in the system. For example: A passive radiator system for a 10″ woofer/subwoofer that has 10mm of X-max would require 2-10″ passive radiators with 10mm of X-max. For single passive radiator systems, it is common to use a passive that is larger than the active woofer(s)/subwoofer(s).
Specifications
| Article number | DS270-PR |
| EAN | 0844632000409 |
| Woofer Series | Dayton Audio Designer series |
| Woofer Type | Passive Radiator |
| Nominal Diameter | 10" |
| Resonant Frequency (Fs) | 21.9 Hz |
| Mechanical Q (Qms) | 3.98 |
| Diaphragm Mass Inc. Airload (Mms) | 88.4 g |
| Mechanical Compliance of Suspension (Cms) | 0.6 mm/N |
| Surface Area of Cone (Sd) | 353 cm² |
| Volume of Displacement (Vd) | 340.0 cm³ |
| Compliance Equivalent Volume (Vas) | 105.6 liters |
| Maximum Linear Excursion (Xmax) | 11 mm |
| Cone / Diaphragm Material | Coated Paper |
| Surround Material | Rubber |
| Basket / Frame Material | Steel |
| Overall Outside Diameter | 270 mm |
| Overall Depth | 71.4 mm |
| Baffle Cutout Diameter | 227 mm |
| # Mounting Holes | 5 |
