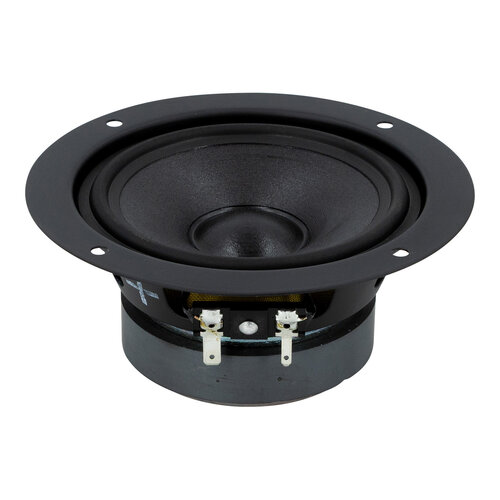

Monacor MSH-116/4 Mid-bass woofer
€69.95
Monacor MSH-116/4 4″Mid-bass woofer
2 in stock
Description
Highlights
- High-end technology
- Coated special cone
- Dust cap with high damping
- Extra flat basket (no need for recessed installation)
Product details
Best possible linearity; Perfect mass-drive ratio with wide bandwidth; For a sound of the extra class. HOBBY HiFi 03/2015: “The MSH-116/4 impresses with a perfect sound, a surprisingly wide bandwidth and a high efficiency – a really great midrange speaker.”
Specifications
| Article number | MSH-116/4 |
| EAN | 4007754073683 |
| Nominal Diameter | 4" |
| Power Handling (RMS) | 40 Watts |
| Power Handling (max) | 120 W |
| Sensitivity (SPL at 1m / 2.83V) | 91 dB |
| Frequency Response | 95 – 10000 Hz |
| DC Resistance (Re) | 3.2 Ω |
| Voice Coil Inductance (Le) | 0.18 mH |
| Resonant Frequency (Fs) | 95 Hz |
| Mechanical Q (Qms) | 2.38 |
| Electromagnetic Q (Qes) | 0.48 |
| Total Q (Qts) | 0.40 |
| Diaphragm Mass Inc. Airload (Mms) | 4.6 g |
| Moving Mass Of Diaphragm (Mmd) | 4.3 g |
| Mechanical Compliance of Suspension (Cms) | 620 µm/N |
| Surface Area of Cone (Sd) | 55 cm² |
| Volume of Displacement (Vd) | 5.5 cm³ |
| BL Product (BL) | 4.3 T·m |
| Compliance Equivalent Volume (Vas) | 2.7 litres |
| Maximum Linear Excursion (Xmax) | 1 mm |
| Driver's Mechanical Losses (Rms) | 1.2 N·s/m |
| Article number | MSH-116/4 |
| EAN | 4007754073683 |
Additional information
| Nominal Diameter | 4″ |
|---|---|
| Power Handling (RMS) | 40 Watts |
| Power Handling (max) | 120 W |
| Sensitivity (SPL at 1m / 2.83V) | 91 dB |
| Frequency response | 95 – 10000 Hz |
| DC Resistance (Re) | 3.2 Ω |
| Voice Coil Inductance (Le) | 0.18 mH |
| Resonant Frequency (Fs) | 95 Hz |
| Mechanical Q (Qms) | 2.38 |
| Electromagnetic Q (Qes) | 0.48 |
| Total Q (Qts) | 0.40 |
| Diaphragm Mass Inc. Airload (Mms) | 4.6 g |
| Moving Mass Of Diaphragm (Mmd) | 4.3 g |
| Mechanical Compliance of Suspension (Cms) | 620 μm/N |
| Surface Area of Cone (Sd) | 55 cm2 |
| Volume of Displacement (Vd) | 5.5 cm³ |
| BL Product (BL) | 4.3 T·m |
| Compliance Equivalent Volume (Vas) | 2.7 Litres |
| Maximum Linear Excursion (Xmax) | 1 mm |
| Driver's Mechanical Losses (Rms) | 1.2 N·s/m |
