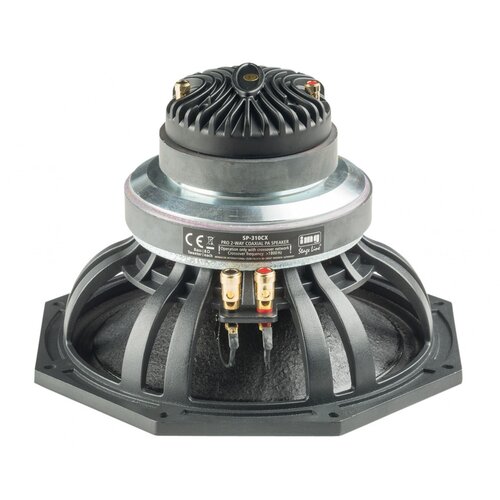

Monacor SP-310CX 2-Way Coaxial PA Speaker with Integrated Horn Tweeter
€234.95
The SP-310CX coaxial woofer is a PA bass speaker of high power capability and high efficiency. Featuring a coaxially arranged horn tweeter it has excellent sound characteristics.
Available on backorder
Highlights
- 25 cm (10″) PA bass speaker of high power capability and high efficiency
- Coaxially arranged horn tweeter with 25 mm (1″, voice coil = 44 mm) high-frequency driver
- Robust diecast basket with rear-ventilated centering spider
- 64 mm (2½”) heat-resistant voice coil on a polyamide voice coil former (TIL)
- Excellent and consistent radiation pattern
Product Details
SP-310CX 2-Way Coaxial PA Speaker with Integrated Horn Tweeter
The SP-310CX features an excellent and consistent radiation pattern. Due to its robust diecast basket and a heat-resistant voice coil it is shock and heat protected. It furthermore features an excellent and consistent radiation pattern. The result is a powerful speaker that is ideally suited for stage monitors or very compact full range speaker systems.
Note: Operation only allowed with crossover network (recommended crossover frequency: >1,800 Hz)
Klang+Ton 02/2016
“The speaker system Studio 10 features a very neutral sound with great power reserves. Suitable as a studio monitor as well as for hi-fi applications of high requirements. The Studio 10 provides a well-balanced and neutral sound which achieves top results.” (SP-310CX in a project from K+T)
Specifications
| Article number | SP-310CX |
| EAN | 4007754246582 |
| Woofer Type | Coaxial |
| Nominal Diameter | 10" |
| Power Handling (RMS) | 200 Watts |
| Power Handling (max) | 400 W (bass) / 100 W (tweeter) |
| Impedance (Z) | 2 x 8 Ω |
| Sensitivity (SPL at 1m / 2.83V) | 96 dB |
| Frequency Response | f3-3,000 Hz (bass) 1,000-22,000 Hz (tweeter) |
| Voice Coil Diameter | 64 mm (bass) / 44 mm (tweeter) |
| Magnet Weight | 1.6 kg |
| DC Resistance (Re) | 5.6 ohms |
| Voice Coil Inductance (Le) | 0.65 mH |
| Resonant Frequency (Fs) | 60 Hz |
| Mechanical Q (Qms) | 3.24 |
| Electromagnetic Q (Qes) | 0.36 |
| Total Q (Qts) | 0.32 |
| Diaphragm Mass Inc. Airload (Mms) | 32 g |
| Mechanical Compliance of Suspension (Cms) | 0.24 mm/N |
| Surface Area of Cone (Sd) | 346 cm2 |
| BL Product (BL) | 13.30 Tm |
| Compliance Equivalent Volume (Vas) | 41 l |
| Maximum Linear Excursion (Xmax) | 2.5 mm |
| Voice Coil Former | polyamide (TIL) |
| Overall Depth | 188 mm |
| Baffle Cutout Diameter | 232 mm |
| # Mounting Holes | 8 |
| Article number | SP-310CX |
| EAN | 4007754246582 |
| Woofer Type | Coaxial |
|---|---|
| Nominal Diameter | 10″ |
| Power Handling (RMS) | 200 Watts |
| Power Handling (max) | 400 W (bass) / 100 W (tweeter) |
| Impedance (Z) | 2 x 8 Ω |
| Sensitivity (SPL at 1m / 2.83V) | 96 dB |
| Frequency response | f3-3,000 Hz (bass) 1,000-22,000 Hz (tweeter) |
| Voice Coil Diameter | 64 mm (bass) / 44 mm (tweeter) |
| Magnet Weight | 1.6 kg |
| DC Resistance (Re) | 5.6 ohms |
| Voice Coil Inductance (Le) | 0.65 mH |
| Resonant Frequency (Fs) | 60 Hz |
| Mechanical Q (Qms) | 3.24 |
| Electromagnetic Q (Qes) | 0.36 |
| Total Q (Qts) | 0.32 |
| Diaphragm Mass Inc. Airload (Mms) | 32 g |
| Mechanical Compliance of Suspension (Cms) | 0.24 mm/N |
| Surface Area of Cone (Sd) | 346 cm2 |
| BL Product (BL) | 13.30 Tm |
| Compliance Equivalent Volume (Vas) | 41 l |
| Maximum Linear Excursion (Xmax) | 2.5 mm |
| Voice Coil Former | polyamide (TIL) |
| Overall Depth | 188 mm |
| Baffle Cutout Diameter | 232 mm |
| # Mounting Holes | 8 |
