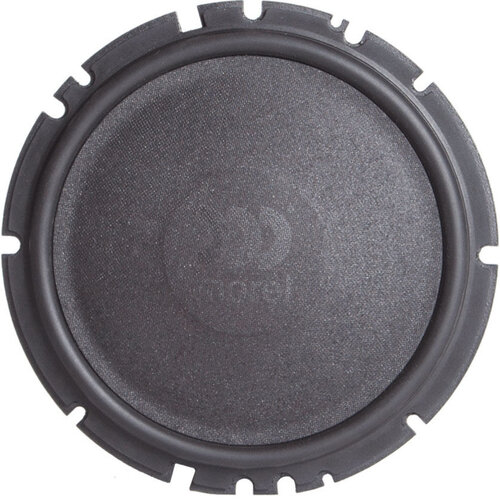

Morel PowerSlim 6 Ultra Shallow 6″ Woofer 4 Ohm
€219.95
The Morel PowerSlim 6 Woofer is a 6″ mid-woofer that features a composite pulp diaphragm in the form of a large shallow dome. The oversize motor system is impressive with a 54mm voicecoil (wound with Aluminium Hexatech wire) & a vented Neodymium magnet. This hand assembled unit is very innovative and high quality.
Available on backorder
Highlights
- Ultra Shallow Profile
- 2.1″ Large Hexatech™ Aluminum voice coil
- Neodymium Magnet System
- High power handling
Product details
Morel PowerSlim 6 Ultra Shallow 6″ Woofer 4 Ohm
The Morel PowerSlim 6 Woofer is a very shallow profile in-car woofer designed to fit in the most restricted mounting positions – this drive unit opens up a wealth of possibilities and represents a very high quality audio solution for difficult automotive installations. It features an ultra-low profile with a basket depth of 14.1mm and has an oversize motor system with a 54mm voicecoil (wound with Aluminium Hexatech wire) & a vented Neodymium magnet. The woofer has a composite pulp diaphragm in the form of a large shallow dome.
By using a unique 6″ dome diaphragm Morel has managed to move the voice coil and magnet towards the front of the driver creating a one of a kind woofer. Thanks to the dome diaphragm, this driver also has remarkable on and off axis response up to 3,000 Hz making this driver ideal for use in 2-way speaker designs.
Specifications
| Article number | PowerSlim6 |
| EAN | 8785256847662 |
| Power Handling (RMS) | 80 Watts |
| DC Resistance (Re) | 4 Ω |
| Resonant Frequency (Fs) | 66 Hz |
| Mechanical Q (Qms) | 2.47 |
| Electromagnetic Q (Qes) | 1.55 |
| Total Q (Qts) | 0.95 |
| Diaphragm Mass Inc. Airload (Mms) | 20 g |
| Mechanical Compliance of Suspension (Cms) | 0.28 mm/N |
| Surface Area of Cone (Sd) | 141 cm² |
| BL Product (BL) | 4.64 Tm |
| Compliance Equivalent Volume (Vas) | 7.7 Liters |
| Maximum Linear Excursion (Xmax) | 2.5 mm |
| Driver's Mechanical Losses (Rms) | 3.37 ΩM |
| Voice Coil Wire Material | Hexatech™ Aluminum |
| Voice Coil Former | Aluminum |
| Magnet Material | Neodymium |
| Overall Outside Diameter | 160 mm |
| Overall Depth | 33.4 mm |
| Baffle Cutout Diameter | 134 mm |
| Bolt Circle Diameter | 154 mm |
| # Mounting Holes | 4 |
| Mounting Hole Diameter | 3 mm |
