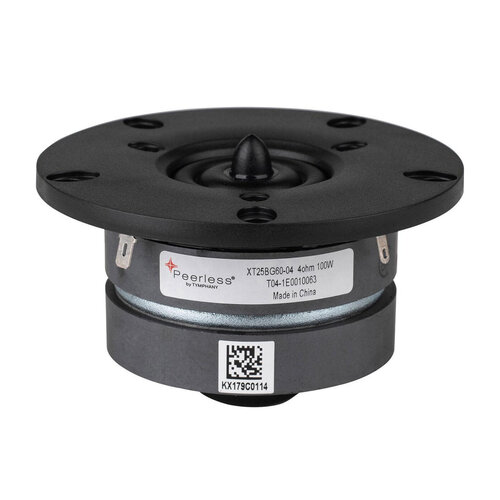

Peerless by Tymphany XT25BG60-04 Ring Radiator Tweeter
€49.95
The Tymphany XT25BG60-04 features a patented dual concentric diaphragm and a unique waveguide center plug that provide an excellent on- and off-axis response.
235 in stock
Description
Highlights of the Peerless Tymphany XT25BG60-04 Ring Radiator Tweeter
- Sensitivity (SPL at 1m / 2.83V): 92.6 dB
- Resonant Frequency (Fs): 570 Hz
- Flat response well beyond 20 kHz
- Waveguide center plug (patented)
Product details Peerless Tymphany XT25BG60-04 Ring Radiator Tweeter
Peerless by Tymphany XT25BG60-04 1″ Dual Ring Radiator Tweeter
This member of the XT tweeter family utilizes two Tymphany technologies to deliver exceptional sound quality: the ring radiator patent, and the central waveguide patent. This model features a 4 ohm 25 mm voice coil, mounted in a ferrite magnet motor. The tweeter also features a rear chamber to create extended low frequency response. The faceplate features recessed mounting holes which minimizes reflections off of mounting screws.
Specifications
| Article number | XT25BG60-04 |
| EAN | 0844632083679 |
| Tweeter Type | Ring Radiator |
| Tweeter Series | Peerless by Tymphany XT series |
| Cone / Dome Diameter | 25 mm | 1" |
| Power Handling (RMS) | 15 Watts |
| Impedance (Z) | 4 Ω |
| Sensitivity (SPL at 1m / 2.83V) | 92.6 dB |
| Frequency Response | 1000 – 20000 Hz |
| Resonant Frequency (Fs) | 570 Hz |
| DC Resistance (Re) | 3.4 Ω |
| Voice Coil Inductance (Le) | 0.016 mH |
| Mechanical Q (Qms) | 2.67 |
| Electromagnetic Q (Qes) | 0.502 |
| Total Q (Qts) | 0.42 |
| Overall Outside Diameter | 104.5 mm |
| Cutout Diameter | 73 mm |
| Depth | 67 mm |
| Diaphragm Material | Fabric |
| plus | Very good extended frequency range |
| Article number | XT25BG60-04 |
| EAN | 0844632083679 |
Additional information
| Tweeter Type | Ring Radiator |
|---|---|
| Tweeter Series | Peerless by Tymphany XT series |
| Cone / Dome Diameter | 25 mm | 1″ |
| Power Handling (RMS) | 15 Watts |
| Impedance (Z) | 4 Ω |
| Sensitivity (SPL at 1m / 2.83V) | 92.6 dB |
| Frequency response | 1000 – 20000 Hz |
| Resonant Frequency (Fs) | 570 Hz |
| DC Resistance (Re) | 3.4 Ω |
| Voice Coil Inductance (Le) | 0.016 mH |
| Mechanical Q (Qms) | 2.67 |
| Electromagnetic Q (Qes) | 0.502 |
| Total Q (Qts) | 0.42 |
| Overall Outside Diameter | 104.5 mm |
| Cutout Diameter | 73 mm |
| Depth | 67 mm |
| Diaphragm Material | Fabric |
