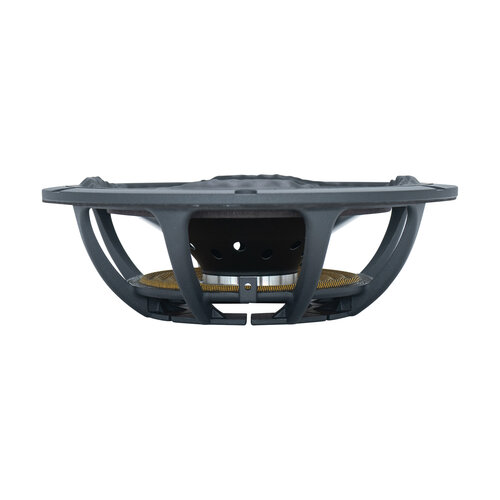

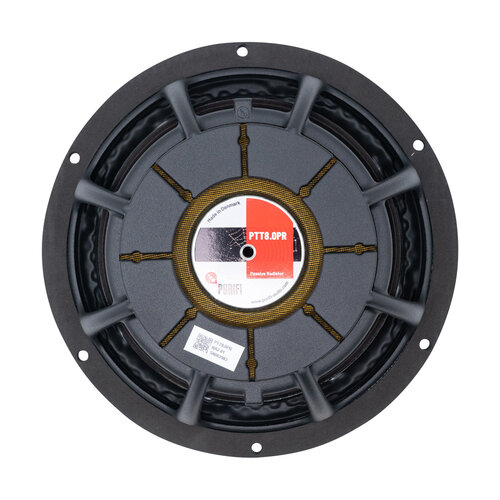

PURIFI PTT8.0PR-NA2-01 8” Ultra Low Distortion Passive Radiator
€199.95
The 8.0” passive radiator incorporates the easily recognizable PURIFI NeutralSurround suspension in order to eliminate Surround Radiation Distortion.
4 in stock
Description
Highlights
- Vibroacoustic optimized cone and dust cap in black anodized aluminum
- PURIFI Neutral Surround eliminates Surround Radiation Distortion (SRD)
- 15mm one-way peak excursion with constant Sd
- Mass Plug with M6 thread for adding extra mass
- Designed and manufactured in Denmark
Product Details
PTT8.0PR-NA2-01 8” Ultra Low Distortion Passive Radiator
The 8.0” passive radiator incorporates the easily recognizable PURIFI NeutralSurround suspension in order to eliminate Surround Radiation Distortion. With its low-distortion properties, long linear stroke and option for adding mass, the driver is eminently suited as a companion to the PTT8.0X drivers especially in compact speaker construction where a traditional reflex port would limit the performance.
Specifications
| Article number | PTT8.0PR-NA2-01 |
| EAN | 8785256847068 |
| Woofer Type | Passive Radiator |
| Nominal Diameter | 8" |
| Resonant Frequency (Fs) | 14 Hz |
| Mechanical Q (Qms) | 9.4 |
| Diaphragm Mass Inc. Airload (Mms) | 132.0g |
| Mechanical Compliance of Suspension (Cms) | 0.93mm/N |
| Surface Area of Cone (Sd) | 235.1cm2 |
| Compliance Equivalent Volume (Vas) | 73.0L |
| Maximum Linear Excursion (Xmax) | 7.5 mm |
| Cone / Diaphragm Material | Black Anodized Aluminum |
| Overall Depth | 62.5mm |
| Baffle Cutout Diameter | 193mm |
| Mounting Hole Diameter | 5.2mm |
| Article number | PTT8.0PR-NA2-01 |
| EAN | 8785256847068 |
Additional information
| Woofer Type | Passive Radiator |
|---|---|
| Nominal Diameter | 8″ |
| Resonant Frequency (Fs) | 14 Hz |
| Mechanical Q (Qms) | 9.4 |
| Diaphragm Mass Inc. Airload (Mms) | 132.0g |
| Mechanical Compliance of Suspension (Cms) | 0.93mm/N |
| Surface Area of Cone (Sd) | 235.1cm2 |
| Compliance Equivalent Volume (Vas) | 73.0L |
| Maximum Linear Excursion (Xmax) | 7.5 mm |
| Cone / Diaphragm Material | Black Anodized Aluminum |
| Overall Depth | 62.5mm |
| Baffle Cutout Diameter | 193mm |
| Mounting Hole Diameter | 5.2mm |
