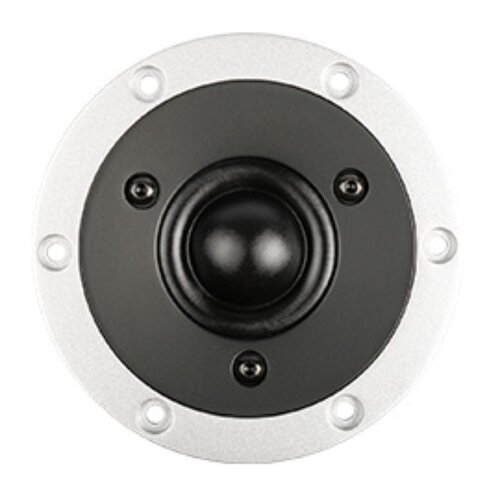

SB Acoustics Satori TW29RN-8 Ring Dome Tweeter
€174.95
The SB Acoustics TW29RN-8 Ring Dome Tweeter is a high-end tweeter that is designed to reproduce high frequencies with clarity and detail. It features a non-resonant diaphragm design, a two-part aluminum faceplate, dual balanced compression chambers, dual copper caps, a high saturation neodymium motor system, and a non-reflective cast aluminum chamber.
2 in stock
Highlights
- A ring dome diaphragm
- A neodymium magnet
- A copper voice coil
- A dual chamber design
- Clear, detailed high-frequency sounds
- Low distortion
- High power handling
Product Details
SB Acoustics TW29RN-8 Ring Dome Tweeter
The TW29RN-8 has a frequency response of 650Hz to 20kHz and a sensitivity of 93dB. It is also very power-efficient, with a rated power handling of 80W.
The TW29RN-8 is a great choice for anyone who is looking for a high-quality tweeter that can reproduce high frequencies with clarity and detail. It is perfect for use in high-end home theater and audio systems.
Specifications
| Article number | TW29RN-8 |
| EAN | 8785256859924 |
| Cone / Dome Diameter | 29 mm |
| Power Handling (RMS) | 80 Watts |
| Impedance (Z) | 8 Ω |
| Sensitivity (SPL at 1m / 2.83V) | 93 dB |
| Frequency Response | 650 – 20.000 Hz |
| Resonant Frequency (Fs) | 650 Hz |
| DC Resistance (Re) | 6.2 Ω |
| Voice Coil Inductance (Le) | 0.04 mH |
| Mechanical Q (Qms) | 1.74 |
| Electromagnetic Q (Qes) | 0.66 |
| Total Q (Qts) | 0.48 |
| Overall Outside Diameter | 103.8 mm |
| Cutout Diameter | 70 mm |
| Depth | 26.7 mm |
| Article number | TW29RN-8 |
| EAN | 8785256859924 |
| Cone / Dome Diameter | 29 mm |
|---|---|
| Power Handling (RMS) | 80 Watts |
| Impedance (Z) | 8 Ω |
| Sensitivity (SPL at 1m / 2.83V) | 93 dB |
| Frequency response | 650 – 20.000 Hz |
| Resonant Frequency (Fs) | 650 Hz |
| DC Resistance (Re) | 6.2 Ω |
| Voice Coil Inductance (Le) | 0.04 mH |
| Mechanical Q (Qms) | 1.74 |
| Electromagnetic Q (Qes) | 0.66 |
| Total Q (Qts) | 0.48 |
| Overall Outside Diameter | 103.8 mm |
| Cutout Diameter | 70 mm |
| Depth | 26.7 mm |
