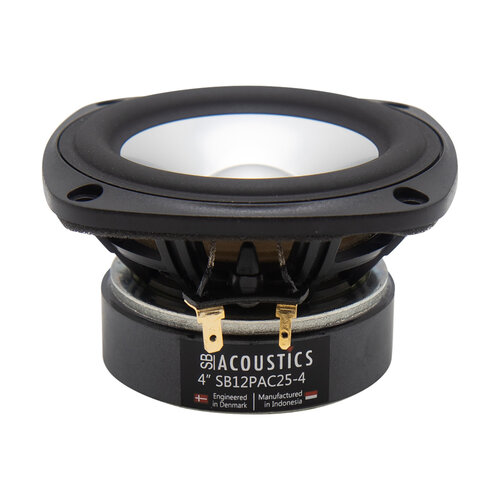

SB Acoustics SB12PAC25-4 4” Aluminium Cone Mid-range Woofer
€31.45
SB Acoustics SB12PAC25-4 4” Aluminium Mid-range Woofer
Available on backorder
Description
Highlights
- Vented reinforced plastic chassis
- Anodized aluminum cone
- Low damping rubber surround
- Large vented motor system
- Long stroke linear suspension
- Light-weight CCAW voice coil
- Non-conducting fiberglass coil former
- Non-resonant long life lead wires
Product details
The SB Acoustics SB12PAC25-4 is a 4 inch mid-range woofer with an aluminium cone. The SB12PAC25-4 uses a light-weight copper coated aluminium wire voice coil to create a responsive mid-range woofer. It also has a low Fs frequency which should allow for a low crossover point in a 3-way system.
Specifications
| Article number | SB12PAC25-4 |
| EAN | 8785256842070 |
| Woofer Type | Mid-range woofer |
| Nominal Diameter | 4'' |
| Power Handling (RMS) | 30 Watts |
| Impedance (Z) | 4 Ohms |
| Sensitivity (SPL at 1m / 2.83V) | 87 dB |
| Voice Coil Diameter | 25.4 mm |
| Magnet Weight | 400 g |
| DC Resistance (Re) | 3.1 Ohms |
| Voice Coil Inductance (Le) | 0.24 mH |
| Resonant Frequency (Fs) | 52.5 Hz |
| Mechanical Q (Qms) | 5.0 |
| Electromagnetic Q (Qes) | 0.33 |
| Total Q (Qts) | 0.31 |
| Diaphragm Mass Inc. Airload (Mms) | 6.1 g |
| Mechanical Compliance of Suspension (Cms) | 1.5 mm/N |
| Surface Area of Cone (Sd) | 50 cm2 |
| BL Product (BL) | 4.35 Tm |
| Maximum Linear Excursion (Xmax) | 5 mm |
| Driver's Mechanical Losses (Rms) | 0.4 kg/s |
| Cone / Diaphragm Material | Aluminum |
| Voice Coil Wire Material | copper coated alumimium |
| Voice Coil Former | Fibre glass |
| Basket / Frame Material | Plastic |
| Magnet Material | Ferrite |
| Overall Outside Diameter | 108,9 mm |
| Overall Depth | 69,3 mm |
| Baffle Cutout Diameter | 102 mm |
| # Mounting Holes | 4 |
| Article number | SB12PAC25-4 |
| EAN | 8785256842070 |
Additional information
| Woofer Type | Mid-range woofer |
|---|---|
| Nominal Diameter | 4” |
| Power Handling (RMS) | 30 Watts |
| Impedance (Z) | 4 ohms |
| Sensitivity (SPL at 1m / 2.83V) | 87 dB |
| Voice Coil Diameter | 25.4 mm |
| Magnet Weight | 400 g |
| DC Resistance (Re) | 3.1 ohms |
| Voice Coil Inductance (Le) | 0.24 mH |
| Resonant Frequency (Fs) | 52.5 Hz |
| Mechanical Q (Qms) | 5.0 |
| Electromagnetic Q (Qes) | 0.33 |
| Total Q (Qts) | 0.31 |
| Diaphragm Mass Inc. Airload (Mms) | 6.1 g |
| Mechanical Compliance of Suspension (Cms) | 1.5 mm/N |
| Surface Area of Cone (Sd) | 50 cm² |
| BL Product (BL) | 4.35 Tm |
| Maximum Linear Excursion (Xmax) | 5 mm |
| Driver's Mechanical Losses (Rms) | 0.4 kg/s |
| Cone / Diaphragm Material | Aluminum |
| Voice Coil Wire Material | copper coated alumimium |
| Voice Coil Former | Fibre glass |
| Basket / Frame Material | Plastic |
| Magnet Material | Ferrite |
| Overall Outside Diameter | 108,9 mm |
| Overall Depth | 69,3 mm |
| Baffle Cutout Diameter | 102 mm |
| # Mounting Holes | 4 |
