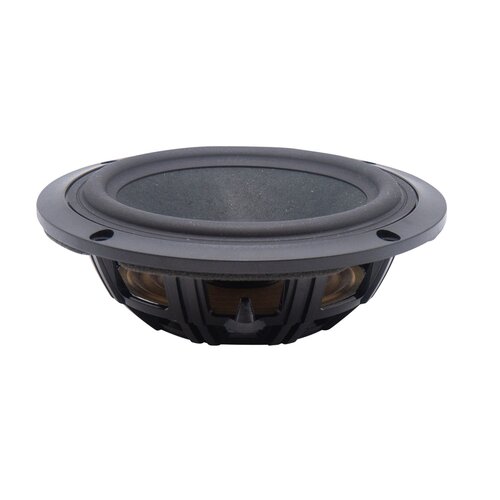

SB Acoustics SB13PFCR-00 Passive Radiator
€21.95
SB Acoustics SB13PFCR-00 Passive Radiator The SB Acoustics SB13PFCR-00 is a 5 inch paper cone passive bass radiator designed to complement the SB13PFCR drive units. The mass loading is easily adjusted to suit the given application.
8 in stock
Description
Highlights
- Vented reinforced plastic chassis
- Proprietary cone material with natural fibers made in-house
- Soft low damping surround
- Easily adjustable moving mass
- Symmetric suspension
Product details
Specifications
| Article number | SB13PFCR-00 |
| EAN | 8785256845811 |
| Resonant Frequency (Fs) | 23 Hz |
| Mechanical Q (Qms) | 5.9 |
| Diaphragm Mass Inc. Airload (Mms) | 36 g |
| Mechanical Compliance of Suspension (Cms) | 1.33 mm/N |
| Surface Area of Cone (Sd) | 87 cm2 |
| Compliance Equivalent Volume (Vas) | 14.2 Liters |
| Maximum Linear Excursion (Xmax) | 10 mm |
| Driver's Mechanical Losses (Rms) | 0.88 kg/s |
| Article number | SB13PFCR-00 |
| EAN | 8785256845811 |
Additional information
| Resonant Frequency (Fs) | 23 Hz |
|---|---|
| Mechanical Q (Qms) | 5.9 |
| Diaphragm Mass Inc. Airload (Mms) | 36 g |
| Mechanical Compliance of Suspension (Cms) | 1.33 mm/N |
| Surface Area of Cone (Sd) | 87 cm2 |
| Compliance Equivalent Volume (Vas) | 14.2 Liters |
| Maximum Linear Excursion (Xmax) | 10 mm |
| Driver's Mechanical Losses (Rms) | 0.88 Kg/s |
