SB Audience ROSSO-10CX300 10” Coaxial Woofer

Highlights of the ROSSO-10CX300

• 600W LF + 100W HF power handling for high-output performance
• Integrated precision HF horn with shared ferrite/neo magnet structure
• Weather-resistant cone with sisal and manila fiber reinforcement
• High sensitivity: 95dB LF / 105dB HF for efficient system integration

Product details ROSSO-10CX300

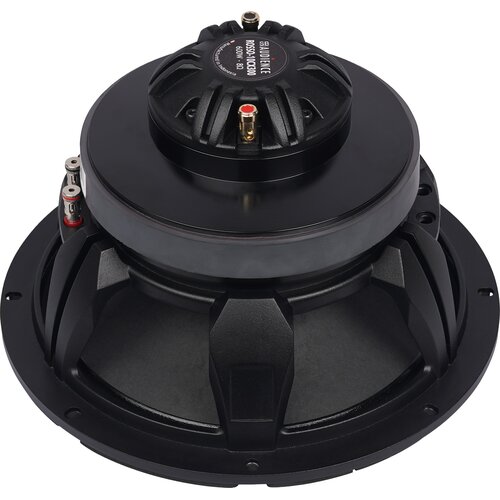

ROSSO-10CX300 10” Coaxial Loudspeaker Driver

The ROSSO-10CX300 is a high-performance 10-inch coaxial loudspeaker designed for applications requiring wide frequency coverage and compact integration. The LF unit features a 300W AES-rated power handling with 95dB sensitivity, operating smoothly from 58Hz to 7300Hz. The 60.6mm ASVCAW voice coil is wound on a fiberglass former for minimal damping and thermal stability. A ferrite magnet with a neodymium slug enhances the flux density (0.94T) for higher SPL and improved transient response.

The HF section uses a 44.3mm PSVCAR voice coil wound on a Kapton former, powered by a high-efficiency neodymium motor structure delivering 105dB sensitivity across 1.5kHz to 20kHz. It incorporates a precision-machined horn integrated into the cast aluminum frame for controlled directivity and improved off-axis performance.

Durability is enhanced with a weatherproof coated paper cone reinforced with natural fibers, and the triple-roll cloth surround maintains linear excursion up to 8.2mm Xmax. The driver includes advanced features like a single-height spider for LF linearity and a demodulation-free HF circuit for extended clarity.

This robust yet compact coaxial unit is ideal for premium stage monitors, compact PA systems, and advanced custom loudspeaker designs demanding clarity, output, and coherence from a single point-source transducer.
