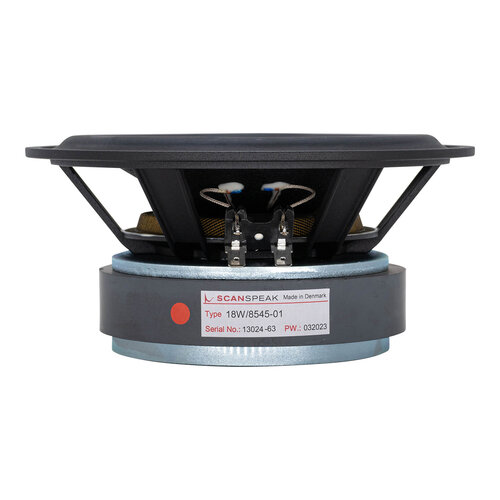

Scan-Speak Classic 18W/8545-01 Mid-range Woofer
€189.95
The ScanSpeak Classic 18W/8545-01 Mid-range Woofer is a high-quality speaker driver that is known for its accurate sound reproduction and smooth frequency response. It is a 7-inch speaker with a paper cone and a rubber surround. The cone is impregnated with carbon fiber, which gives it a high stiffness-to-mass ratio and helps to improve the speaker’s dynamic range. The rubber surround is low-damping, which helps to reduce distortion.
54 in stock
Highlights
- Accurate sound reproduction
- Wide frequency response
- High sensitivity
- Low impedance
- Well-made construction
Product details
Scan-Speak Classic 18W/8545-01 Mid-range Woofer
The Classic 18W/8545-01 has a frequency response of 60-2,200 Hz, which makes it well-suited for reproducing the mid-range frequencies in music. It has a sensitivity of 86 dB, which means that it can be driven by a wide range of amplifiers. The speaker has an impedance of 8 ohms, which makes it compatible with most speaker systems.
Specifications
| Article number | 18W/8545-01 |
| EAN | 8785256848515 |
| Woofer Series | Scan-Speak Classic series |
| Woofer Type | Midwoofer |
| Nominal Diameter | 7 " |
| Power Handling (RMS) | 100 Watts |
| Impedance (Z) | 8 Ω |
| Sensitivity (SPL at 1m / 2.83V) | 88 dB |
| Frequency Response | 60 – 2200 Hz |
| Voice Coil Diameter | 42 mm |
| DC Resistance (Re) | 5.7 Ω |
| Voice Coil Inductance (Le) | 0.39 mH |
| Resonant Frequency (Fs) | 25 Hz |
| Mechanical Q (Qms) | 1.55 |
| Electromagnetic Q (Qes) | 0.22 |
| Total Q (Qts) | 0.2 |
| Diaphragm Mass Inc. Airload (Mms) | 18g |
| Mechanical Compliance of Suspension (Cms) | 2.3 mm/N |
| Surface Area of Cone (Sd) | 145 cm² |
| BL Product (BL) | 8.4 N/A |
| Compliance Equivalent Volume (Vas) | 68.6 Liters |
| Maximum Linear Excursion (Xmax) | 6.5 mm |
| Article number | 18W/8545-01 |
| EAN | 8785256848515 |
| Woofer Series | Scan-Speak Classic series |
|---|---|
| Woofer Type | Midwoofer |
| Nominal Diameter | 7 “ |
| Power Handling (RMS) | 100 Watts |
| Impedance (Z) | 8 Ω |
| Sensitivity (SPL at 1m / 2.83V) | 88 dB |
| Frequency response | 60 – 2200 Hz |
| Voice Coil Diameter | 42 mm |
| DC Resistance (Re) | 5.7 Ω |
| Voice Coil Inductance (Le) | 0.39 mH |
| Resonant Frequency (Fs) | 25 Hz |
| Mechanical Q (Qms) | 1.55 |
| Electromagnetic Q (Qes) | 0.22 |
| Total Q (Qts) | 0.2 |
| Diaphragm Mass Inc. Airload (Mms) | 18g |
| Mechanical Compliance of Suspension (Cms) | 2.3 mm/N |
| Surface Area of Cone (Sd) | 145 cm2 |
| BL Product (BL) | 8.4 N/A |
| Compliance Equivalent Volume (Vas) | 68.6 Liters |
| Maximum Linear Excursion (Xmax) | 6.5 mm |
