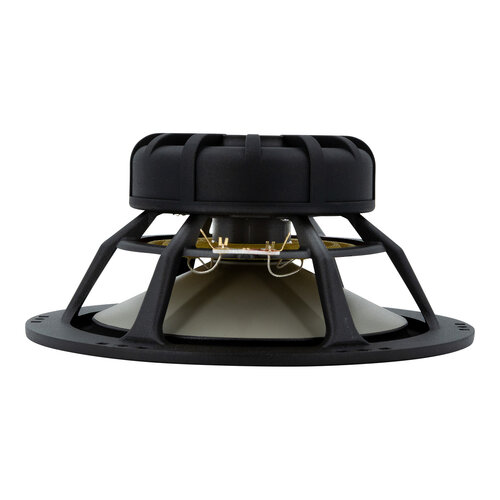

SEAS Excel W22EX/001 – E0022 8″ Magnesium Cone Woofer
€469.95
Seas Excel W22EX/001 – E0022 8″ Magnesium Cone Woofer
4 in stock
Highlights
- Long term power handling (RMS) is 120 Watts
- Precision cast and surface treated magnesium cone coupled to a natural rubber surround showing no sign of midrange (edge) resonances
- Gold plated terminals mounted on a glass fiber reinforced plate reduce contact resistance and improve reliability
Product details
Precision cast and surface treated magnesium cone coupled to a natural rubber surround showing no sign of midrange (edge) resonances. Heavy copper rings mounted above and below the T-shaped pole piece reduce non linear and modulation distortion and increase overload margin.
Extremely stiff and stable injection molded metal basket keeps the critical components in perfect alignment. Large windows in the basket both above and below the spider reduce sound reflexion, air flow noise and cavity resonance to a minimum. A solid copper phase plug enhances the performance of the copper rings and improves heat conduction away from the pole piece. Gold plated terminals mounted on a glass fiber reinforced plate to reduce contact resistance and improve reliability.
Specifications
| Article number | W22EX001 |
| EAN | 0696277270200 |
| Woofer Series | SEAS Excel Series |
| Nominal Diameter | 8 " | 221 mm |
| Power Handling (RMS) | 120 W |
| Power Handling (max) | 300 W |
| Impedance (Z) | 8 Ω |
| Sensitivity (SPL at 1m / 2.83V) | 88 dB |
| Frequency Response | 30 – 2000 Hz |
| Voice Coil Diameter | 39 mm |
| Magnet Weight | 0.64 kg |
| DC Resistance (Re) | 6.1 Ω |
| Voice Coil Inductance (Le) | 0.61 mH |
| Resonant Frequency (Fs) | 25 Hz |
| Mechanical Q (Qms) | 2.14 |
| Electromagnetic Q (Qes) | 0.41 |
| Total Q (Qts) | 0.34 |
| Diaphragm Mass Inc. Airload (Mms) | 26.2 g |
| Mechanical Compliance of Suspension (Cms) | 1.5 mm/N |
| Surface Area of Cone (Sd) | 220 cm² |
| BL Product (BL) | 8.1 N/A |
| Compliance Equivalent Volume (Vas) | 98 L |
| Maximum Linear Excursion (Xmax) | 5 mm |
| Driver's Mechanical Losses (Rms) | 2.06 Ns/m |
| Cone / Diaphragm Material | Magnesium |
| Surround Material | Rubber |
| Basket / Frame Material | Injection moulded metal |
| Overall Outside Diameter | 221 mm |
| Overall Depth | 93 mm |
| Baffle Cutout Diameter | 186.4 mm |
| Bolt Circle Diameter | 209.5 mm |
| # Mounting Holes | 6 |
| Mounting Hole Diameter | 5.0 mm |
