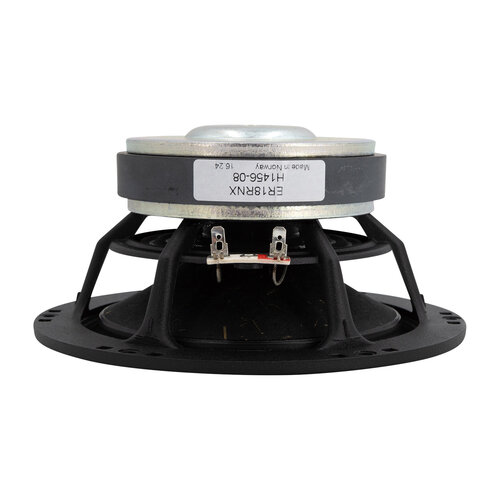

SEAS Prestige ER18RNX-8 – H1456-08 7″ Reed Paper Cone Woofer
€144.95
Seas Prestige ER18RNX-8 – H1456-08 7″ Reed Paper Cone Woofer
Available on backorder
Highlights
- Long term power handling (RMS) is 80 Watts
- Smooth, extended frequency response
- Heavy copper ring below the T-shaped pole piece reduces nonlinear and modulation distortion
Product details
The ER18RNX is a 6,5’’ cone driver, developed for use as a long throw high fidelity woofer or woofer/midrange unit. Edge coated reed/paper pulp cone together with perfectly matched moving parts gives a smooth, extended frequency response.
Bumped back plate in the magnet system, together with the very long and light weight copper clad aluminum voice coil, allow extreme coil excursion with low distortion. Heavy copper ring below the T-shaped pole piece will reduce nonlinear and modulation distortion.
Extremely stiff and stable injection molded metal basket keeps the critical components in perfect alignment. Large windows in the basket both above and below the spider reduce sound reflection, air flow noise and cavity resonance to a minimum.
Specifications
| Article number | ER18RNX-8 |
| EAN | 0696277269969 |
| Woofer Series | Prestige |
| Woofer Type | Midwoofer |
| Nominal Diameter | 6.5 " | 176 mm |
| Power Handling (RMS) | 80 W |
| Power Handling (max) | 250 W |
| Impedance (Z) | 8 Ω |
| Sensitivity (SPL at 1m / 2.83V) | 88.5 dB |
| Frequency Response | 45 – 3000 Hz |
| Voice Coil Diameter | 39 mm |
| Magnet Weight | 0.64 kg |
| DC Resistance (Re) | 5.9 Ω |
| Voice Coil Inductance (Le) | 0.67 mH |
| Resonant Frequency (Fs) | 37 Hz |
| Mechanical Q (Qms) | 1.58 |
| Electromagnetic Q (Qes) | 0.39 |
| Total Q (Qts) | 0.32 |
| Diaphragm Mass Inc. Airload (Mms) | 14.0 g |
| Mechanical Compliance of Suspension (Cms) | 1.3 mm/N |
| Surface Area of Cone (Sd) | 136 cm² |
| BL Product (BL) | 7.2 N/A |
| Compliance Equivalent Volume (Vas) | 32 L |
| Maximum Linear Excursion (Xmax) | 6 mm |
| Driver's Mechanical Losses (Rms) | 2.20 Ns/m |
| Cone / Diaphragm Material | Paper |
| Voice Coil Wire Material | CCAW |
| Basket / Frame Material | Injection moulded metal |
| Overall Outside Diameter | 176 mm |
| Overall Depth | 78.0 mm |
| Baffle Cutout Diameter | 145.2 mm |
| Bolt Circle Diameter | 166 mm |
| # Mounting Holes | 6 |
| Mounting Hole Diameter | 5.0 mm |
| Article number | ER18RNX-8 |
| EAN | 0696277269969 |
| Woofer Series | Prestige |
|---|---|
| Woofer Type | Midwoofer |
| Nominal Diameter | 6.5 ” | 176 mm |
| Power Handling (RMS) | 80 W |
| Power Handling (max) | 250 W |
| Impedance (Z) | 8 Ω |
| Sensitivity (SPL at 1m / 2.83V) | 88.5 dB |
| Frequency response | 45 – 3000 Hz |
| Voice Coil Diameter | 39 mm |
| Magnet Weight | 0.64 kg |
| DC Resistance (Re) | 5.9 Ω |
| Voice Coil Inductance (Le) | 0.67 mH |
| Resonant Frequency (Fs) | 37 Hz |
| Mechanical Q (Qms) | 1.58 |
| Electromagnetic Q (Qes) | 0.39 |
| Total Q (Qts) | 0.32 |
| Diaphragm Mass Inc. Airload (Mms) | 14.0 g |
| Mechanical Compliance of Suspension (Cms) | 1.3 mm/N |
| Surface Area of Cone (Sd) | 136 cm² |
| BL Product (BL) | 7.2 N/A |
| Compliance Equivalent Volume (Vas) | 32 L |
| Maximum Linear Excursion (Xmax) | 6 mm |
| Driver's Mechanical Losses (Rms) | 2.20 Ns/m |
| Cone / Diaphragm Material | Paper |
| Voice Coil Wire Material | CCAW |
| Basket / Frame Material | Injection moulded metal |
| Overall Outside Diameter | 176 mm |
| Overall Depth | 78.0 mm |
| Baffle Cutout Diameter | 145.2 mm |
| Bolt Circle Diameter | 166 mm |
| # Mounting Holes | 6 |
| Mounting Hole Diameter | 5.0 mm |
