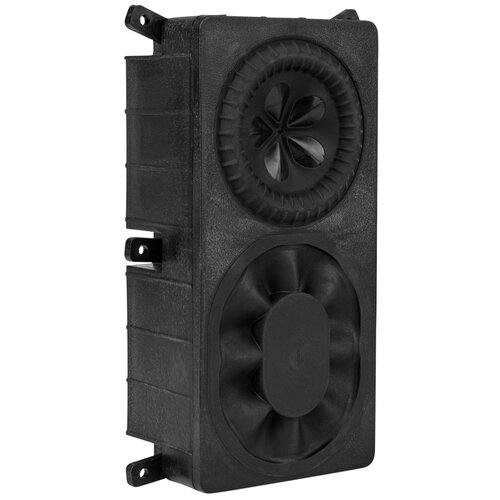

Tang Band T3-2190S 3″ Subwoofer Module
€64.95
One of the smallest self-contained subwoofer systems, Tang Band’s T3-2190S pairs a long throw 3″ driver with a high excursion passive radiator in an ultra-compact enclosure allowing you to add substantial low end capabilities to almost any project.
5 in stock
Product details
Tang Band’s T3-2190S subwoofer module features a passive radiator-assisted 3″ high excursion driver that can deliver powerful response down to 50 Hz in a compact 19 x 9.2 x 5.97 cm package. The Tang Band subwoofer and full range modules are the easiest way to design small speakers that provide big sound.
Tang Band’s line of patented speaker modules are designed for modern audio applications such as sound bars, desktop multimedia speakers, flat panel TV speakers, and portable audio systems. Do not let this diminutive subwoofer module fool you; with decent efficiency and power handling this module can provide powerful low end to almost any project. Perfect for use in conjunction with Tang Band’s full-range speaker modules for a true full-range system that that delivers hi-fidelity sound while consuming very little space.
Specifications
| Article number | T3-2190S |
| EAN | 0848864039299 |
| Woofer Type | Subwoofer, passive radiator design |
| Power Handling (RMS) | 15 Watts |
| Power Handling (max) | 30 watts |
| Impedance (Z) | 4 ohms |
| Sensitivity (SPL at 1m / 2.83V) | 80 dB |
| Frequency Response | 50 – 2000 Hz |
| Voice Coil Diameter | 25.4 mm |
| Resonant Frequency (Fs) | 20 Hz |
| Cone / Diaphragm Material | PP composite with elastomer |
| Surround Material | Rubber |
| Basket / Frame Material | PP composite |
| Magnet Material | Neodymium |
| Overall Outside Diameter | 190 x 92 mm |
| Overall Depth | 5.97 cm |
| # Mounting Holes | 6 |
| Mounting Hole Diameter | 4.2 mm |
| Article number | T3-2190S |
| EAN | 0848864039299 |
| Woofer Type | Subwoofer, passive radiator design |
|---|---|
| Power Handling (RMS) | 15 Watts |
| Power Handling (max) | 30 Watts |
| Impedance (Z) | 4 ohms |
| Sensitivity (SPL at 1m / 2.83V) | 80 dB |
| Frequency response | 50 – 2000 Hz |
| Voice Coil Diameter | 25.4 mm |
| Resonant Frequency (Fs) | 20 Hz |
| Cone / Diaphragm Material | PP composite with elastomer |
| Surround Material | Rubber |
| Basket / Frame Material | PP composite |
| Magnet Material | Neodymium |
| Overall Outside Diameter | 190 x 92 mm |
| Overall Depth | 5.97 cm |
| # Mounting Holes | 6 |
| Mounting Hole Diameter | 4.2 mm |
