TPA3116D Amplifier module
€26.45
The TPA3116D2 2 x 50W Class-D stereo audio amplifier features high-quality sound reproduction and volume control with anti-pop on/off switch.
Available on backorder
Highlights
- 5 mm audio input jack or 3-pin socket with cable for versatility
- Wide input voltage from DC 5V to 24V
- Built-in reverse power supply protection and speaker output short-circuit protection
- Includes shaft nut, washer, four 0.2″ (4 mm) standoffs, and knob for a professional looking finish
- Power and speaker phoenix jacks for quick installation
Product Details

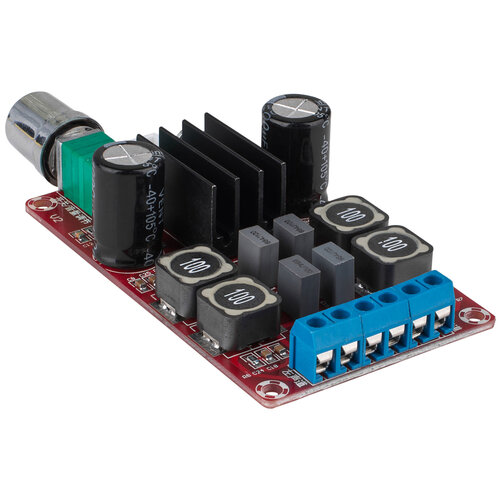

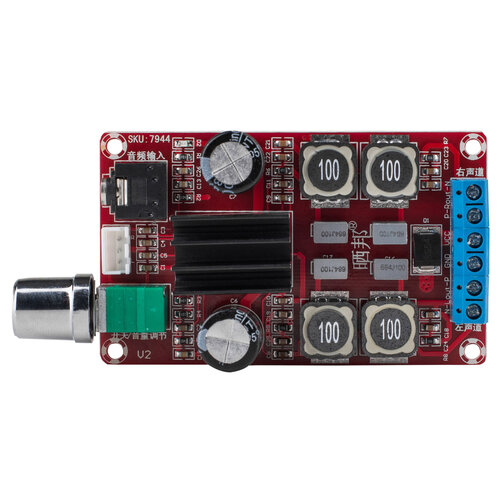

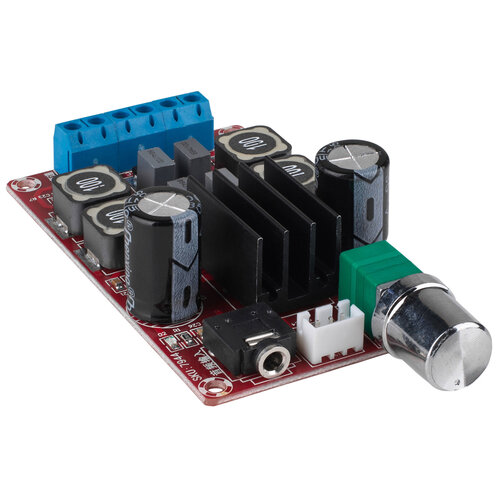

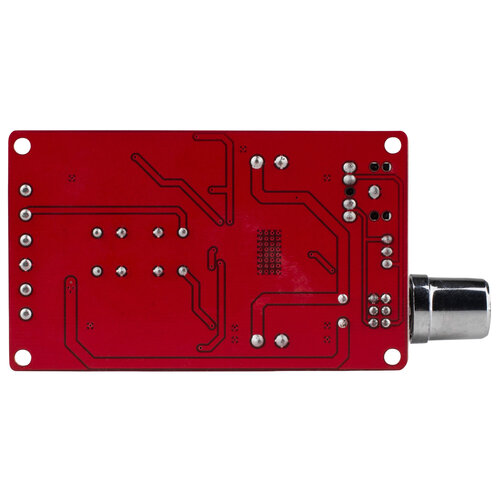

TPA3116D2 2x50W Class D Stereo Amplifier Board with Volume Control
The board’s design, with the popular TPA3116 chip, delivers Class D efficiency and high-quality clean sound reproduction. Pause the music and notice no hiss or hum. Turn the amp board on/off, with the included volume control, and observe no popping noise. This board delivers quality sounding music when it’s playing, and is quiet as a mouse when the music stops.
Make your own power amp or amplified speaker with this two-channel 100W amplifier board. The board features over-current, thermal, and short circuit protection making it perfect for audio projects. Its compact size makes it ideal for inclusion in OEM products or store displays.
Specifications
| Article number | 320-699 |
| EAN | 0848864050447 |
| Rated power output | 2 x 50W @ 4 ohms |
| Minimum load | 4 ohms |
| Signal-to-noise ratio (SNR) | 100 dB |
| Frequency response | 20 to 20,000 Hz |
| Amplifier Classification | Class D |
| Circuit Topology | TPA3116 |
| Speaker output channels | Two-channel stereo |
| Input connection type | 3.5 mm stereo jack or 3-pin socket |
| Power Requirements | 5-24 VDC (12-19 VDC for best results) |
| Power inlet connector | 12" (30 cm) 3-pin female to female |
| Dimensions (L x W x H) | 84 x 51 x 24 mm (shaft size 14 x 6 mm) |
