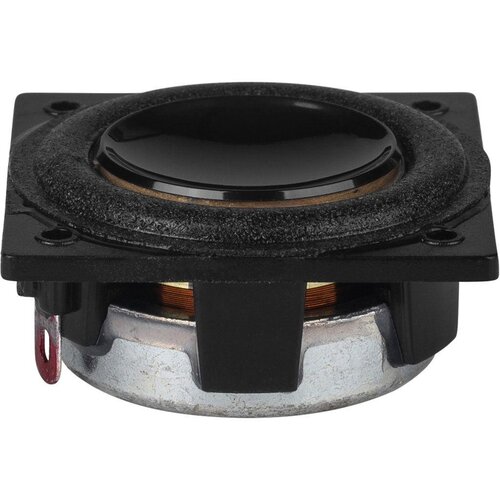

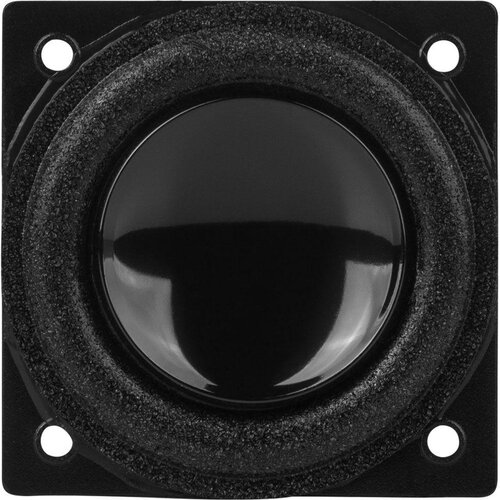

Visaton BF 32 S – 8 Full-range Woofer
€11.95
The Visaton BF 32 S – 8 is a tiny speaker with a big sound. Measuring just 1.3 inches across, this full-range woofer is ideal for situations where space is at a premium. No bigger than a button, it’s perfect for building compact bookshelf speakers, adding sound to miniature projects, or even discreetly installing in-wall speakers. Despite its size, the BF 32 S – 8 delivers impressive sound quality. Its wide and balanced frequency response ensures that your audio sounds natural and clear, with tones reproduced accurately across the spectrum.
3 in stock
Description
Highlights of the Visaton BF 32 S – 8
- Flat TVs
- Info terminals
- other compact devices speech and music reproduction
Product details Visaton BF 32 S – 8
Visaton BF 32 S – 8 Full-range Woofer
The BF 32 S – 8 packs a surprising punch for its size. Thanks to a powerful neodymium magnet, this little speaker can produce surprisingly good bass for its size. While it won’t fill the room with booming low tones, it delivers a well-rounded sound experience that belies its miniature stature. With a power handling capacity of up to 5 watts, it’s ideal for projects where volume isn’t the main concern, but clear and balanced sound is essential.
Specifications
| Article number | BF 32 S – 8 |
| EAN | 4007540022475 |
| Woofer Type | Full Range Woofer |
| Nominal Diameter | 1.3" |
| Power Handling (RMS) | 2 Watts |
| Power Handling (max) | 5 Watts |
| Impedance (Z) | 4 Ω |
| Sensitivity (SPL at 1m / 2.83V) | 78 dB (1 W/1 m) |
| Frequency Response | 150-20.000 Hz |
| Voice Coil Diameter | 20 mm |
| Resonant Frequency (Fs) | 280 Hz |
| Maximum Linear Excursion (Xmax) | 0.6 mm |
| Magnet Material | Neodymium |
| Overall Outside Diameter | 32 mm |
| Overall Depth | 15 mm |
| Baffle Cutout Diameter | 31.5 mm |
| # Mounting Holes | 4 |
| Mounting Hole Diameter | 2 mm |
| plus | Excellent for flat screens (TV and PC), info terminals, other compact devices |
| Article number | BF 32 S – 8 |
| EAN | 4007540022475 |
Additional information
| Woofer Type | Full Range Woofer |
|---|---|
| Nominal Diameter | 1.3″ |
| Power Handling (RMS) | 2 Watts |
| Power Handling (max) | 5 Watts |
| Impedance (Z) | 4 Ω |
| Sensitivity (SPL at 1m / 2.83V) | 78 dB (1 W/1 m) |
| Frequency response | 150-20.000 Hz |
| Voice Coil Diameter | 20 mm |
| Resonant Frequency (Fs) | 280 Hz |
| Maximum Linear Excursion (Xmax) | 0.6 mm |
| Magnet Material | Neodymium |
| Overall Outside Diameter | 32 mm |
| Overall Depth | 15 mm |
| Baffle Cutout Diameter | 31.5 mm |
| # Mounting Holes | 4 |
| Mounting Hole Diameter | 2 mm |
