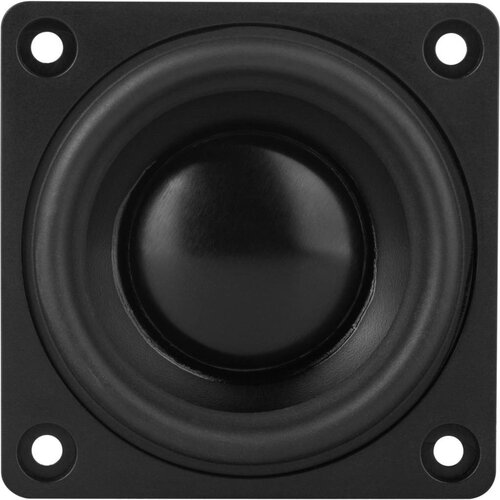

Dayton Audio DMA58-PR 2″ Aluminum Cone Passive Radiator
€10.95
Dayton Audio’s DMA58-PR 2″ aluminum cone passive radiator allows you to tune small enclosures lower than possible using conventional ports. Matching the DMA series of drivers drivers perfectly, this passive radiator is perfect for use in ultra-small designs like smart speakers, sound bars, and portable Bluetooth speakers.
8 in stock
Highlights
- Perfect match for the Dayton Audio DMA series drivers
- Allows tuning small enclosures lower than using conventional ports
- Rear mounted threaded post allows easy mass adjustment for custom tuning
- DIY friendly, oversized mounting flange makes installation simple
Product details
Dayton Audio DMA58-PR 2″ DMA Series Passive Radiator
The DMA58-PR 2″ passive radiator from Dayton Audio is the perfect option for achieving low tuning frequencies from the smallest enclosure designs. This incredibly small passive radiator has all the features you would expect lager units including adjustable mass, aluminum cone, and rubber surround. Visually identical to Dayton Audio’s full-range DMA series drivers, the DMA58-PR can also be used with any small driver that requires a low tuning frequency. The threaded rod and included wing nut on the back of the cone makes it easy to add mass to tune the radiator as needed for your projects. Whether you are building a smart speaker, sound bar, or portable Bluetooth speaker, the Dayton Audio DMA58-PR introduces a new range of possibilities.
Specifications: • Fs: 39.8 Hz • Vas: 0.025 ft³ (0.72 liters) • Qms: 3.93 • Cms: 2.4 mm/N • Mms: 6.7 g • Rms: 0.432 kg/s • Sd: 14.5 cm² • Xmech: 7 mm • Dimensions: Overall diameter: 2.2″ x 2.2″, Cutout diameter: 1.97″, Depth: 1.5″.
Tip: As a general rule, the passive radiator(s) should have at least double the displacement of air (Vd) as the active woofer(s)/subwoofer(s) in the system.
To calculate Vd: Sd x Xmax = Vd
Specifications
| Article number | DMA58-PR |
| EAN | 0848791005619 |
| Woofer Series | Dayton Audio DMA series |
| Woofer Type | Passiver radiator |
| Nominal Diameter | 2" |
| Resonant Frequency (Fs) | 39.8 Hz |
| Mechanical Q (Qms) | 3.93 |
| Diaphragm Mass Inc. Airload (Mms) | 6.7 g |
| Mechanical Compliance of Suspension (Cms) | 2.4 mm/N |
| Surface Area of Cone (Sd) | 14.5 cm² |
| Compliance Equivalent Volume (Vas) | 0.025 ft³ (0.72 liters) |
| Maximum Linear Excursion (Xmax) | 7 mm |
| Driver's Mechanical Losses (Rms) | 0.432 kg/s |
| Cone / Diaphragm Material | Aluminum |
| Basket / Frame Material | Polymer |
| Overall Outside Diameter | 2.2" x 2.2" |
| Overall Depth | 1.5" |
| Baffle Cutout Diameter | 1.97" |
| Bolt Circle Diameter | 2.56" |
| # Mounting Holes | 4 |
| Tip | As a general rule, the passive radiator(s) should have at least double the displacement of air (Vd) as the active woofer(s)/subwoofer(s) in the system. To calculate Vd: Sd x Xmax = Vd |
| Fs | 39.8 Hz |
| Vas | 0.025 ft³ (0.72 liters) |
| Qms | 3.93 |
| Cms | 2.4 mm/N |
| Mms | 6.7 g |
| Rms | 0.432 kg/s |
| Sd | 14.5 cm² |
| Xmech | 7 mm |
| Dimensions | Overall diameter: 2.2" x 2.2", Cutout diameter: 1.97", Depth: 1.5". |
| Article number | DMA58-PR |
| EAN | 0848791005619 |
| Woofer Series | Dayton Audio DMA series |
|---|---|
| Woofer Type | Passiver radiator |
| Nominal Diameter | 2″ |
| Resonant Frequency (Fs) | 39.8 Hz |
| Mechanical Q (Qms) | 3.93 |
| Diaphragm Mass Inc. Airload (Mms) | 6.7 g |
| Mechanical Compliance of Suspension (Cms) | 2.4 mm/N |
| Surface Area of Cone (Sd) | 14.5 cm² |
| Compliance Equivalent Volume (Vas) | 0.025 ft³ (0.72 liters) |
| Maximum Linear Excursion (Xmax) | 7 mm |
| Driver's Mechanical Losses (Rms) | 0.432 kg/s |
| Cone / Diaphragm Material | Aluminum |
| Basket / Frame Material | Polymer |
| Overall Outside Diameter | 2.2″ x 2.2″ |
| Overall Depth | 1.5″ |
| Baffle Cutout Diameter | 1.97″ |
| Bolt Circle Diameter | 2.56″ |
| # Mounting Holes | 4 |
| Tip | As a general rule, the passive radiator(s) should have at least double the displacement of air (Vd) as the active woofer(s)/subwoofer(s) in the system. To calculate Vd: Sd x Xmax = Vd |
| Fs | 39.8 Hz |
| Vas | 0.025 ft³ (0.72 liters) |
| Qms | 3.93 |
| Cms | 2.4 mm/N |
| Mms | 6.7 g |
| Rms | 0.432 kg/s |
| Sd | 14.5 cm² |
| Xmech | 7 mm |
| Dimensions | Overall diameter: 2.2″ x 2.2″, Cutout diameter: 1.97″, Depth: 1.5″. |
