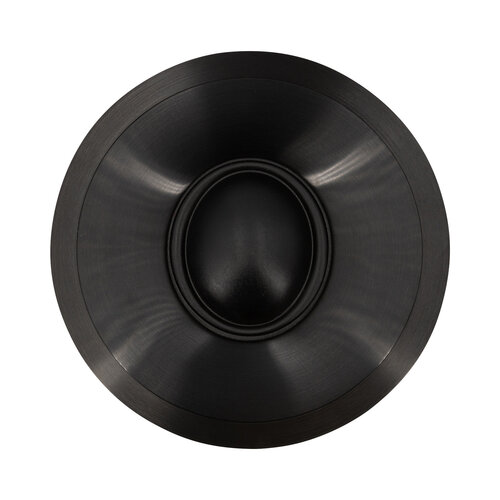

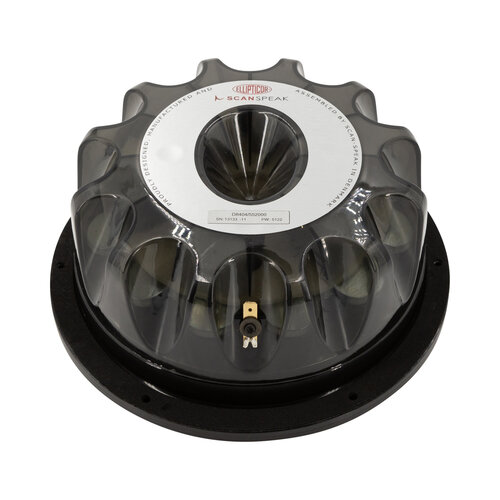

Scan-Speak Ellipticor D8404/552000 Dome midrange
€2,899.95
The Ellipticor D8404/55200 is a versatile midrange driver that can be seamlessly integrated into a variety of speaker applications, including 2-way and 3-way systems, monitor speakers, home theater setups, and studio monitors. Whether you’re a discerning audiophile or a seasoned music producer, the Ellipticor D8404/55200 will elevate your sound to new heights, revealing the subtle nuances and emotional depth of your favorite music.
2 in stock
Description
Highlights
- 84mm coated textile dome for exceptional clarity and detail
- Double suspension for improved damping and transient response
- Extremely powerful neodymium magnet system for high sensitivity and low distortion
- Black anodized aluminum faceplate with a detectable decorative trim-ring
Product details
Scan-Speak Ellipticor D8404/552000 Dome midrange
Elevate your listening experience with the Scan-Speak Ellipticor D8404/55200, a high-performance dome midrange driver that delivers exceptional clarity, transparency, and natural sound reproduction. This premium component features a 84mm coated textile dome, meticulously engineered to produce rich, well-defined vocals and instrumentals. Its double suspension system ensures exceptional damping and transient response, while the powerful neodymium magnet system drives the voice coil with unwavering precision, minimizing distortion and maximizing efficiency.
Specifications
| Article number | D8404/552000 |
| EAN | 9508186618190 |
| Tweeter Type | Dome- Midrange |
| Cone / Dome Diameter | 68/84 mm |
| Impedance (Z) | 4 Ω |
| Sensitivity (SPL at 1m / 2.83V) | 92 dB |
| Frequency Response | 300 – 5.000 Hz |
| Resonant Frequency (Fs) | 280 Hz |
| DC Resistance (Re) | 3.03 Ω |
| Voice Coil Inductance (Le) | 0.04 mH |
| Mechanical Q (Qms) | 3.89 |
| Electromagnetic Q (Qes) | 0.83 |
| Total Q (Qts) | 0.69 |
| Overall Outside Diameter | 210 mm |
| Cutout Diameter | 181 mm |
| Depth | 89.3 mm |
| Mounting Type | 6 Holes, 4.5 mm |
| plus | Exceptionally low distortion |
| Article number | D8404/552000 |
| EAN | 9508186618190 |
Additional information
| Tweeter Type | Dome- Midrange |
|---|---|
| Cone / Dome Diameter | 68/84 mm |
| Impedance (Z) | 4 Ω |
| Sensitivity (SPL at 1m / 2.83V) | 92 dB |
| Frequency response | 300 – 5.000 Hz |
| Resonant Frequency (Fs) | 280 Hz |
| DC Resistance (Re) | 3.03 Ω |
| Voice Coil Inductance (Le) | 0.04 mH |
| Mechanical Q (Qms) | 3.89 |
| Electromagnetic Q (Qes) | 0.83 |
| Total Q (Qts) | 0.69 |
| Overall Outside Diameter | 210 mm |
| Cutout Diameter | 181 mm |
| Depth | 89.3 mm |
| Mounting type | 6 Holes, 4.5 mm |
