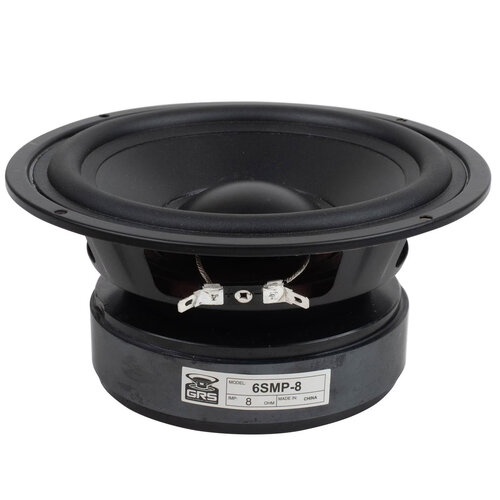

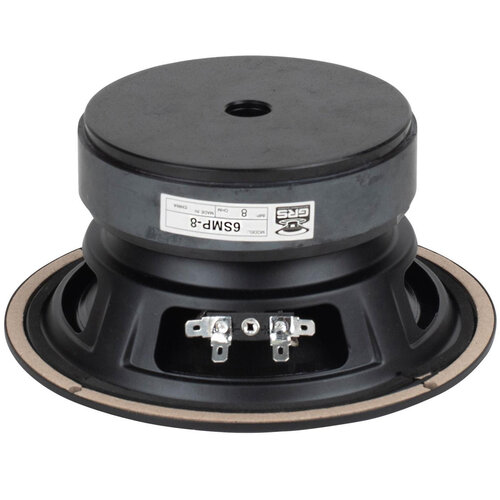

GRS 6SMP-8 6-1/2″ Surface Mount Poly Cone Bass-midwoofer
€39.95
The GRS 6SMP-8 is a 6-1/2″ surface-mount woofer built for precision and performance in tight spaces. With an 8-ohm impedance, high excursion, and carefully engineered thermal management, this driver is a solid fit for full-range or two-way speaker systems where efficiency, clarity, and installation flexibility are key.
4 in stock
Highlights of the GRS 6SMP-8
- Poly cone with rubber surround ensures damped, smooth response with controlled resonance
- Copper cap reduces voice coil inductance and improves high-frequency performance
- 5 mm Xmax and 50W RMS power handling enable clean, dynamic bass output
- Low-profile frame with integrated foam gasket supports airtight surface-mount installation
Product details GRS 6SMP-8
GRS 6SMP-8 Surface Mount Woofer
The GRS 6SMP-8 is a 6-1/2″ 8-ohm woofer specifically engineered for surface-mount applications. It features a damped poly cone with a rubber surround that minimizes unwanted resonances, delivering a usable frequency range from 40 Hz to 2,500 Hz. Its motor system includes a copper cap that reduces distortion by lowering inductance, and a vented pole piece that supports better cooling during high-power operation. The 39 mm voice coil uses an aluminum former to enhance heat transfer and maintain stability under load. With an SPL of 87.7 dB @ 2.83V/1m and an Xmax of 5 mm, the 6SMP-8 offers solid midbass performance and moderate low-end extension. It’s ideal for high-quality compact speaker designs, line arrays, or custom audio installations requiring precise, low-profile mounting solutions.
Specifications
| Article number | 6SMP-8 |
| EAN | 0848864079837 |
| Woofer Type | Bass-midwoofer |
| Power Handling (RMS) | 50 Watts |
| Impedance (Z) | 8 Ohm |
| Sensitivity (SPL at 1m / 2.83V) | 87.7 dB |
| Frequency Response | 40 – 2,500 Hz |
| Voice Coil Diameter | 39 mm |
| DC Resistance (Re) | 6.1 Ohm |
| Voice Coil Inductance (Le) | 0.43 mH |
| Resonant Frequency (Fs) | 47 Hz |
| Mechanical Q (Qms) | 2.70 |
| Electromagnetic Q (Qes) | 0.54 |
| Total Q (Qts) | 0.45 |
| Diaphragm Mass Inc. Airload (Mms) | 21g |
| Mechanical Compliance of Suspension (Cms) | 0.55 mm/N |
| Surface Area of Cone (Sd) | 136 cm² |
| Volume of Displacement (Vd) | 68.4 cm³ |
| BL Product (BL) | 8.37 Tm |
| Compliance Equivalent Volume (Vas) | 14.5 L |
| Maximum Linear Excursion (Xmax) | 5 mm |
| # Mounting Holes | 4 |
| Article number | 6SMP-8 |
| EAN | 0848864079837 |
| Woofer Type | Bass-Midwoofer |
|---|---|
| Power Handling (RMS) | 50 Watts |
| Impedance (Z) | 8 Ohm |
| Sensitivity (SPL at 1m / 2.83V) | 87.7 dB |
| Frequency response | 40 – 2,500 Hz |
| Voice Coil Diameter | 39 mm |
| DC Resistance (Re) | 6.1 Ohm |
| Voice Coil Inductance (Le) | 0.43 mH |
| Resonant Frequency (Fs) | 47 Hz |
| Mechanical Q (Qms) | 2.70 |
| Electromagnetic Q (Qes) | 0.54 |
| Total Q (Qts) | 0.45 |
| Diaphragm Mass Inc. Airload (Mms) | 21g |
| Mechanical Compliance of Suspension (Cms) | 0.55 mm/N |
| Surface Area of Cone (Sd) | 136 cm² |
| Volume of Displacement (Vd) | 68.4 cm³ |
| BL Product (BL) | 8.37 Tm |
| Compliance Equivalent Volume (Vas) | 14.5 L |
| Maximum Linear Excursion (Xmax) | 5 mm |
| # Mounting Holes | 4 |
