Monacor AIRMT-130 AMT Tweeter

€299.95

The AMTs feature a dynamic sound, an excellent transient response, a high efficiency and a low harmonic distortion.

2 in stock

Description

Highlights

  • Tweeter based on the principle of Air Motion Transformer
  • High-performance neodymium magnet system
  • Fine, dynamic and brilliant reproduction of the high frequencies
  • Folded cone made of Kapton and aluminium
  • High power capability and high efficiency
  • For use from 3,000 Hz on
  • Robust aluminium front panel



Product details

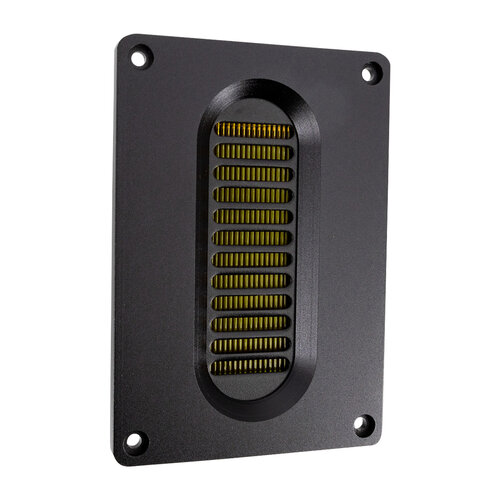

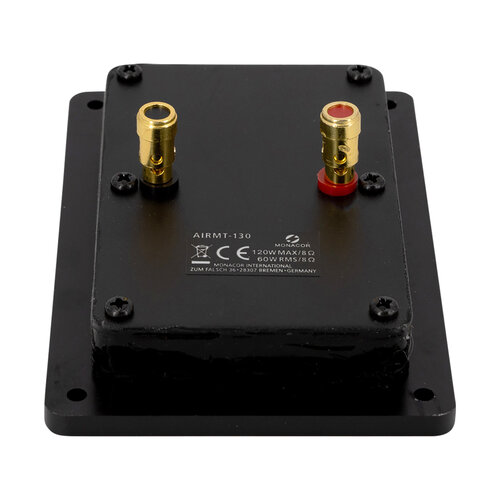

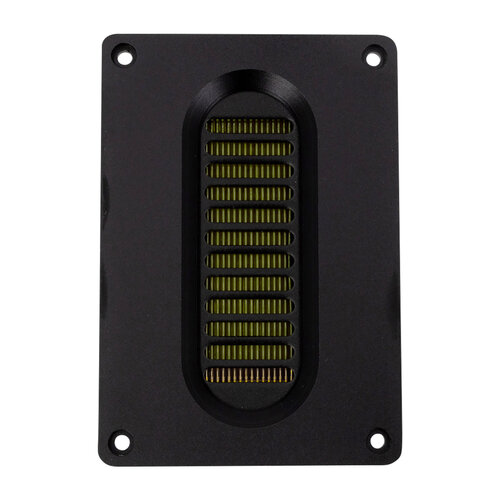

Monacor AIRMT-130 Air Motion Transformer Tweeter



Air Motion Transformers are a special type of tweeter systems which have been developed by the German physicist Oskar Heil during his research on the characteristics of the human ear. The main feature is a film-covered cone with a special folding which vibrates like an accordion when an audio signal is applied. This folding allows to accommodate a large cone area at a minimum of space. The AMTs feature a dynamic sound, an excellent transient response, a high efficiency and a low harmonic distortion.

Specifications

Article number AIRMT-130
EAN 4007754250268
Tweeter Type Air Motion Transformer
Power Handling (RMS) 60 Watts
Power Handling (max) 120 Watts
Impedance (Z) 8 Ω
Sensitivity (SPL at 1m / 2.83V) 98 dB
Frequency Response 2,500-20,000 Hz
Overall Outside Diameter 130 x 90 mm
Cutout Diameter 111 x 71 mm
Depth 38 mm
Diaphragm Material Kapton and Aluminum
Recommended cut frequency 3,000 Hz
Article number AIRMT-130
EAN 4007754250268
Additional information
Tweeter TypeAir Motion Transformer
Power Handling (RMS)60 Watts
Power Handling (max)120 Watts
Impedance (Z)8 Ω
Sensitivity (SPL at 1m / 2.83V)98 dB
Frequency response2,500-20,000 Hz
Overall Outside Diameter130 x 90 mm
Cutout Diameter111 x 71 mm
Depth38 mm
Diaphragm MaterialKapton and Aluminum
