Monacor SP-252E 10” Foam Surround Woofer
€62.95
Ideal replacement speaker with finely tailored T/S parameters making it even an option for low-budget DIY speakers.
Available on backorder
Description
Highlights
- All-round speaker
- Foam surround
- Replacement speaker especially suited for sealed enclosures
Product details

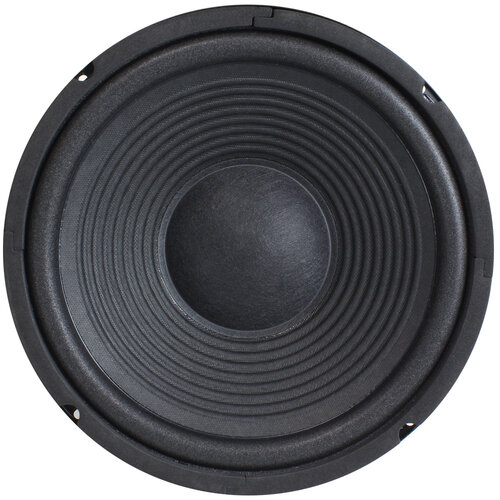

Monacor SP-252E 10” Foam Surround Woofer
The SPH-252E is designed to be a replacement speaker. This means that the frequency response is nice and linear and the T/S parameters were finely tailored to be as versatile as possible. The Qts of 0.5 allows for nice bass extension is sealed enclosures and very low bass extension in larger vented enclosures and the frequency response allows for use in multi-way speakers, F.A.S.T. speakers and large two-way speakers with a beefy tweeter.
Specifications
| Article number | SP-252E |
| EAN | 4007754153521 |
| Woofer Type | Woofer |
| Nominal Diameter | 10'' |
| Power Handling (RMS) | 75 Watts |
| Power Handling (max) | 150 Watts |
| Impedance (Z) | 4 Ohms |
| Sensitivity (SPL at 1m / 2.83V) | 97 dB |
| Frequency Response | 42-1,500 Hz |
| Voice Coil Diameter | 35.5 mm |
| Magnet Weight | 960 g |
| DC Resistance (Re) | 3.75 Ohms |
| Voice Coil Inductance (Le) | 1.1 mH |
| Resonant Frequency (Fs) | 42 Hz |
| Mechanical Q (Qms) | 3.13 |
| Electromagnetic Q (Qes) | 0.60 |
| Total Q (Qts) | 0.50 |
| Diaphragm Mass Inc. Airload (Mms) | 43 g |
| Mechanical Compliance of Suspension (Cms) | 0.33 mm/N |
| Surface Area of Cone (Sd) | 353 cm2 |
| BL Product (BL) | 8.50 Tm |
| Compliance Equivalent Volume (Vas) | 57 l |
| Maximum Linear Excursion (Xmax) | 4 mm |
| Cone / Diaphragm Material | Paper |
| Surround Material | Foam |
| Voice Coil Wire Material | Copper |
| Voice Coil Former | Aluminium |
| Basket / Frame Material | Stamped steel |
| Magnet Material | Ferrite |
| Overall Outside Diameter | 255 mm |
| Overall Depth | 110 mm |
| Baffle Cutout Diameter | 232 mm |
| # Mounting Holes | 4 |
| Mounting Hole Diameter | 5 x 7.5 mm |
| Article number | SP-252E |
| EAN | 4007754153521 |
Additional information
| Woofer Type | Woofer |
|---|---|
| Nominal Diameter | 10” |
| Power Handling (RMS) | 75 Watts |
| Power Handling (max) | 150 Watts |
| Impedance (Z) | 4 ohms |
| Sensitivity (SPL at 1m / 2.83V) | 97 dB |
| Frequency response | 42-1,500 Hz |
| Voice Coil Diameter | 35.5 mm |
| Magnet Weight | 960 g |
| DC Resistance (Re) | 3.75 Ohms |
| Voice Coil Inductance (Le) | 1.1 mH |
| Resonant Frequency (Fs) | 42 Hz |
| Mechanical Q (Qms) | 3.13 |
| Electromagnetic Q (Qes) | 0.60 |
| Total Q (Qts) | 0.50 |
| Diaphragm Mass Inc. Airload (Mms) | 43 g |
| Mechanical Compliance of Suspension (Cms) | 0.33 mm/N |
| Surface Area of Cone (Sd) | 353 cm² |
| BL Product (BL) | 8.50 Tm |
| Compliance Equivalent Volume (Vas) | 57 l |
| Maximum Linear Excursion (Xmax) | 4 mm |
| Cone / Diaphragm Material | Paper |
| Surround Material | Foam |
| Voice Coil Wire Material | Copper |
| Voice Coil Former | Aluminium |
| Basket / Frame Material | Stamped Steel |
| Magnet Material | Ferrite |
| Overall Outside Diameter | 255 mm |
| Overall Depth | 110 mm |
| Baffle Cutout Diameter | 232 mm |
| # Mounting Holes | 4 |
| Mounting Hole Diameter | 5 x 7.5 mm |
