Morel Classic Advanced CAT 378 Horn Dome Tweeter
€99.95
Morel’s CAT378 features a hand treated 1-1/8″ soft dome, horn loaded for higher efficiency and high dynamic range without power compression.
25 in stock
Description
Highlights
- 94 mm wide dispersion horn-loading faceplate
- Large Hexatech™ aluminum voice coil allows high power handling
- High efficiency design for dynamic output
- Replaceable Acuflex™ dome/coil assembly
Product details

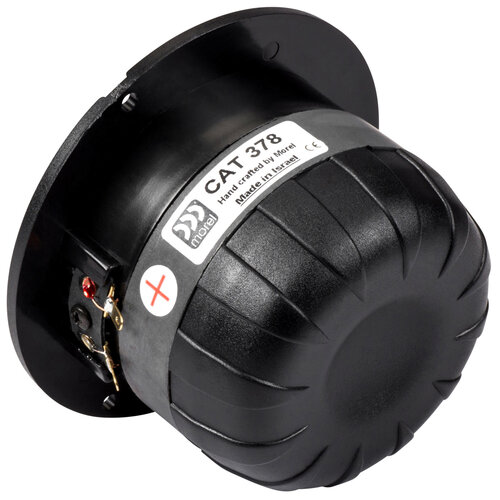

Morel Classic Advanced CAT 378 1″ Horn Tweeter
Morel’s CAT378 features a hand treated 1-1/8″ soft dome, horn loaded for higher efficiency and high dynamic range without power compression. The magnet assembly is vented into a damped rear chamber to lower resonance and to eliminate “honking” at lower frequencies. Latest evolution of the popular MDT-37 tweeter.
Specifications
| Article number | CAT378 |
| EAN | 0844632070761 |
| Tweeter Type | Soft Dome |
| Tweeter Series | Classic Advanced Series |
| Cone / Dome Diameter | 25 mm | 1" |
| Power Handling (RMS) | 200 Watts |
| Impedance (Z) | 8 Ω |
| Sensitivity (SPL at 1m / 2.83V) | 93 dB |
| Frequency Response | 1,800 to 20,000 Hz |
| Resonant Frequency (Fs) | 700 Hz |
| DC Resistance (Re) | 5.2 ohms |
| Overall Outside Diameter | 3.7" |
| Cutout Diameter | 2.83" |
| Depth | 2.32" |
| Article number | CAT378 |
| EAN | 0844632070761 |
Additional information
| Tweeter Type | Soft Dome |
|---|---|
| Tweeter Series | Classic Advanced Series |
| Cone / Dome Diameter | 25 mm | 1″ |
| Power Handling (RMS) | 200 Watts |
| Impedance (Z) | 8 Ω |
| Sensitivity (SPL at 1m / 2.83V) | 93 dB |
| Frequency response | 1,800 to 20,000 Hz |
| Resonant Frequency (Fs) | 700 Hz |
| DC Resistance (Re) | 5.2 ohms |
| Overall Outside Diameter | 3.7″ |
| Cutout Diameter | 2.83″ |
| Depth | 2.32″ |
