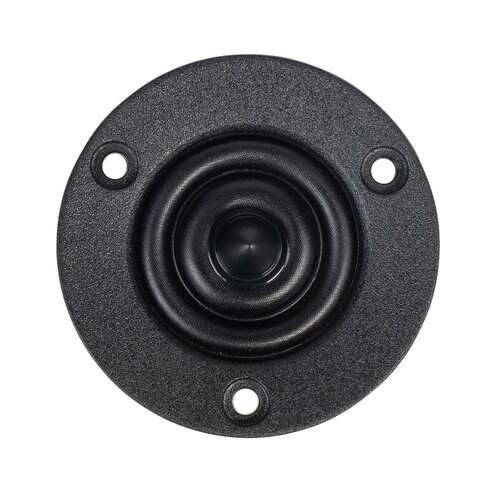

Peerless by Tymphany XT25SC50-04 1″ Ring Radiator Tweeter 4 ohms

Highlights of the Peerless by Tymphany XT25SC50-04

• 1.0″ tweeter with fabric diaphragm
• Neodymium motor with copper cap design
• 4 ohm nominal impedance with 3.2 ohm DC resistance
• 800 to 20,000 Hz frequency range
• 90.4 dB sensitivity at 2.83 V/1 m

Product details Peerless by Tymphany XT25SC50-04

Peerless by Tymphany XT25SC50-04 1.0″ Ring Radiator Tweeter 4 Ohm

The Peerless by Tymphany XT25SC50-04 is a compact high-frequency transducer for detailed tweeter applications. Its fabric diaphragm and neodymium motor are combined with a copper cap design, supporting controlled high-frequency performance in a lightweight 0.08 kg package.

With a frequency range of 800 to 20,000 Hz, the XT25SC50-04 offers broad treble coverage for use as an audio component in suitable loudspeaker designs. Sensitivity is rated at 90.4 dB at 2.83 V/1 m, normalized to 87.4 dB at 1 W/1 m for its 4 ohm nominal impedance.

The electrical parameters make the tweeter straightforward to evaluate during electric measurements and crossover development. It features a 3.2 ohm DC resistance, 3.5 ohm minimum impedance, and low 0.021 mH inductance, helping define its behavior in the intended operating range.

Mechanical parameters include an 820 Hz resonance frequency, 0.34 g moving mass, 110 μm/N compliance, and 0.867 mm linear excursion. These specifications make the XT25SC50-04 a focused choice for DIY and replacement speaker projects where a compact 4 ohm ring radiator tweeter is required.
