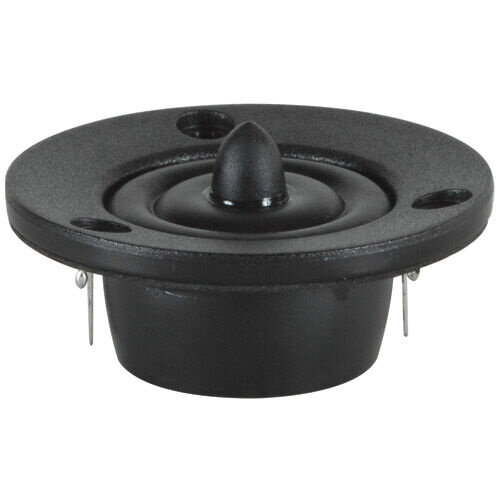

Peerless by Tymphany XT25TG30-04 Dual Ring Radiator Tweeter
€49.95
The XT25TG30-04 from Tymphany features a patented dual concentric diaphragm and a unique wave guide center plug which provide an excellent on- and off-axis response.
315 in stock
Description
Highlights of the Peerless XT25TG30-04 Ring Radiator Tweeter
- Sensitivity (SPL at 1m / 2.83V): 91.9 dB
- Resonant Frequency (Fs): 440 Hz
- Dual ring radiator diaphragm (patented)
- Waveguide center plug (patented)
Product details XT25TG30-04 Ring Radiator Tweeter
Peerless by Tymphany XT25TG30-04 1″ Dual Ring Radiator Tweeter
This member of the XT tweeter family utilizes two Tymphany technologies to deliver exceptional sound quality: the ring radiator patent, and the central waveguide patent. This model features a 4 ohm 25mm voice coil, mounted in a ferrite magnet motor. The tweeter also features a rear chamber to create extended low frequency response. The faceplate features recessed mounting holes which minimizes reflections off of mounting screws.
What are the typical applications for the XT25TG30-04?
This tweeter is commonly used in:
- High-end bookshelf and floor-standing speakers
- Studio monitors
- DIY speaker projects
- Car audio systems (with proper integration)
Specifications
| Article number | XT25TG30-04 |
| EAN | 0844632083693 |
| Tweeter Type | Ring Radiator |
| Tweeter Series | XT Series |
| Cone / Dome Diameter | 25 mm | 1" |
| Power Handling (RMS) | 15 Watts |
| Impedance (Z) | 4 Ω |
| Sensitivity (SPL at 1m / 2.83V) | 91.9 dB |
| Frequency Response | 800 – 20000 Hz |
| Resonant Frequency (Fs) | 440 Hz |
| DC Resistance (Re) | 3.1 ohms |
| Voice Coil Inductance (Le) | 0.009 mH |
| Mechanical Q (Qms) | 2.36 |
| Electromagnetic Q (Qes) | 0.539 |
| Total Q (Qts) | 0.44 |
| Overall Outside Diameter | 104 mm |
| Cutout Diameter | 73 mm |
| Depth | 51.7 mm |
| plus | Low distortion |
| Article number | XT25TG30-04 |
| EAN | 0844632083693 |
Additional information
| Tweeter Type | Ring Radiator |
|---|---|
| Tweeter Series | XT Series |
| Cone / Dome Diameter | 25 mm | 1″ |
| Power Handling (RMS) | 15 Watts |
| Impedance (Z) | 4 Ω |
| Sensitivity (SPL at 1m / 2.83V) | 91.9 dB |
| Frequency response | 800 – 20000 Hz |
| Resonant Frequency (Fs) | 440 Hz |
| DC Resistance (Re) | 3.1 ohms |
| Voice Coil Inductance (Le) | 0.009 mH |
| Mechanical Q (Qms) | 2.36 |
| Electromagnetic Q (Qes) | 0.539 |
| Total Q (Qts) | 0.44 |
| Overall Outside Diameter | 104 mm |
| Cutout Diameter | 73 mm |
| Depth | 51.7 mm |
