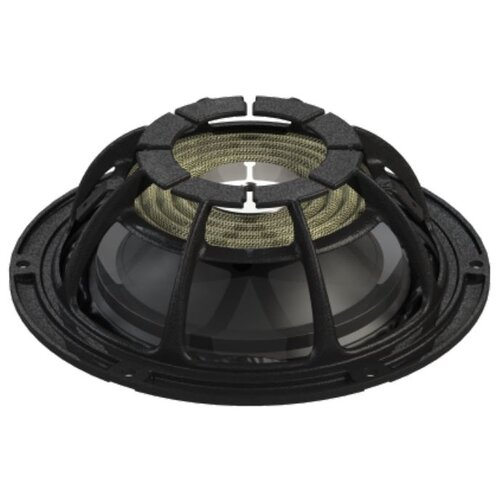

PURIFI PTT6.5PR-NF2-02 Passive Radiator
€129.95
The PTT6.5PR-NF2-02 is a 6.5” high-performance passive radiator featuring PURIFI ‘ s research-based technologies, including the Natural Surround and a cone made from a proprietary fiber mix.
Available on backorder
Description
Highlights
- A whole new take on passive radiator design
- PURIFI ’s Natural Surround
- Bimax spider
- Engineered and manufactured in Denmark
- High linear excursion limit
- Tunable mass
Product Details
PURIFI PTT6.5PR-NF2-02 passive radiator
PURIFI is a fresh company that designs and manufactures extremely high-performance transducers and amplifier modules. Don’t let the freshness fool you; Their leadership team consists out of some well-respected audio technology pioneers. PURIFI developed a deep understanding of many performances degrading aspects for both amplifiers and transducers. Thanks to this understanding the passive radiators from PURIFI are the most high-end passive radiators available at SoundImports.
Specifications
| Article number | PTT6.5PR-NF2-02 |
| EAN | 0691046950055 |
| Woofer Type | Passive radiator |
| Nominal Diameter | 6.5" |
| Resonant Frequency (Fs) | 17 Hz |
| Mechanical Q (Qms) | 10.9 |
| Diaphragm Mass Inc. Airload (Mms) | 80 g |
| Mechanical Compliance of Suspension (Cms) | 1.05 mm/N |
| Surface Area of Cone (Sd) | 133 cm² |
| Volume of Displacement (Vd) | 199.5 cm³ |
| Compliance Equivalent Volume (Vas) | 26.2 L |
| Maximum Linear Excursion (Xmax) | 15 mm |
| Cone / Diaphragm Material | Proprietary Fibre Mix |
| Surround Material | Nitrile rubber |
| Basket / Frame Material | Aluminum alloy diecast |
| Overall Outside Diameter | 176 mm |
| Overall Depth | 48.7 mm |
| Baffle Cutout Diameter | 149 mm |
| Bolt Circle Diameter | 166 mm |
| # Mounting Holes | 6 |
| Mounting Hole Diameter | 5.1 mm |
| The mechanism | Improvement |
| Low surround radiation distortion | Reduces harmonic and intermodulation distortion caused by surround |
| Article number | PTT6.5PR-NF2-02 |
| EAN | 0691046950055 |
Additional information
| Woofer Type | Passive Radiator |
|---|---|
| Nominal Diameter | 6.5″ |
| Resonant Frequency (Fs) | 17 Hz |
| Mechanical Q (Qms) | 10.9 |
| Diaphragm Mass Inc. Airload (Mms) | 80 g |
| Mechanical Compliance of Suspension (Cms) | 1.05 mm/N |
| Surface Area of Cone (Sd) | 133 cm2 |
| Volume of Displacement (Vd) | 199.5 cm³ |
| Compliance Equivalent Volume (Vas) | 26.2 L |
| Maximum Linear Excursion (Xmax) | 15 mm |
| Cone / Diaphragm Material | Proprietary Fibre Mix |
| Surround Material | Nitrile rubber |
| Basket / Frame Material | Aluminum alloy diecast |
| Overall Outside Diameter | 176 mm |
| Overall Depth | 48.7 mm |
| Baffle Cutout Diameter | 149 mm |
| Bolt Circle Diameter | 166 mm |
| # Mounting Holes | 6 |
| Mounting Hole Diameter | 5.1 mm |
| The mechanism | Improvement |
| Low surround radiation distortion | Reduces harmonic and intermodulation distortion caused by surround |
