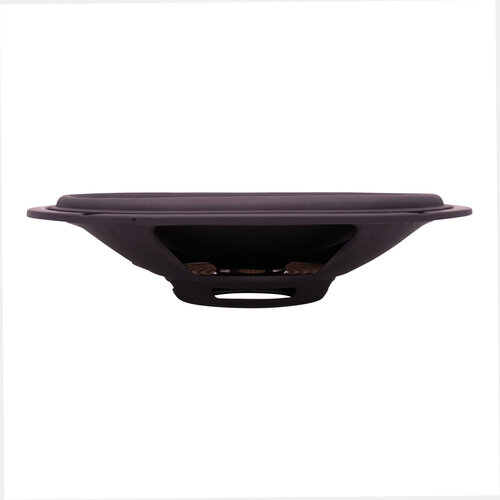

SB Acoustics SB15SFCR-00 5” x 8” Passive Radiator
€32.95
SB Acoustics SB15SFCR-00 5” x 8” Passive Radiator
39 in stock
Description
Highlights
- Racetrack design
- Hard paper cone (made in-house)
- Low damping rubber surround
- Symmetric suspension
- Easily adjustable moving mass
Product details
With a racetrack design, the SB Acoustics SB15SFCR-00 is a 5″ X 8″ passive radiator with a made in-house hard paper cone. Its components also include a low damping rubber surround, symmetric suspension as well as an easily adjustable moving mass.
Specifications
| Article number | SB15SFCR-00 |
| EAN | 0696277269631 |
| Woofer Type | Passive Radiator |
| Nominal Diameter | 5" X 8" |
| Resonant Frequency (Fs) | 21 Hz |
| Mechanical Q (Qms) | 2.7 |
| Diaphragm Mass Inc. Airload (Mms) | 62g |
| Mechanical Compliance of Suspension (Cms) | 0.93 mm/N |
| Surface Area of Cone (Sd) | 178 cm2 |
| Compliance Equivalent Volume (Vas) | 1.47 ft.³ |
| Maximum Linear Excursion (Xmax) | 11 mm |
| Article number | SB15SFCR-00 |
| EAN | 0696277269631 |
Additional information
| Woofer Type | Passive Radiator |
|---|---|
| Nominal Diameter | 5″ X 8″ |
| Resonant Frequency (Fs) | 21 Hz |
| Mechanical Q (Qms) | 2.7 |
| Diaphragm Mass Inc. Airload (Mms) | 62g |
| Mechanical Compliance of Suspension (Cms) | 0.93 mm/N |
| Surface Area of Cone (Sd) | 178 cm2 |
| Compliance Equivalent Volume (Vas) | 1.47 ft.³ |
| Maximum Linear Excursion (Xmax) | 11 mm |
