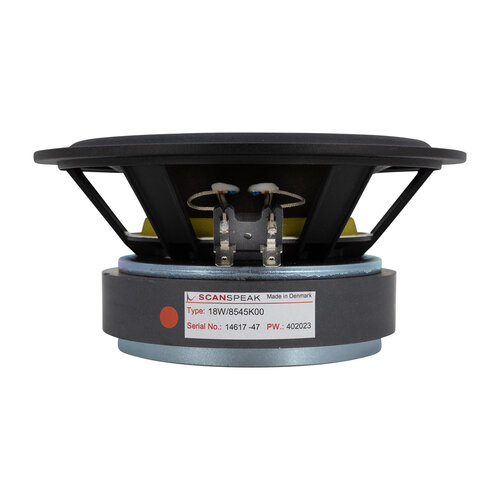

Scan-Speak Classic 18W/8545K00 Mid-range woofer
€189.95
The Symmetric Drive (SD-1) concept with copper in the magnet system was invented by Scan-Speak. High-quality magnet system design has thus been a key feature of Scan-Speak design since the companys inception.
12 in stock
Description
Highlights
- Patented Symmetrical Drive Motor Design
- Low-Loss linear suspension
- Air Dried Paper/Carbon Fibre Cone
- Low Damping SBR Rubber Surround
- 42mm Voice Coil w. fiber glass foil
Product details
Scan-Speak 18W/8545K00 Woofer
The Symmetric Drive (SD-1) concept with copper in the magnet system was invented by Scan-Speak. High-quality magnet system design has thus been a key feature of Scan-Speak design since the companys inception. The Classic woofers are highly praised, and are used in some of the worlds most exceptional high-end Loudspeakers. Some feature Kevlar cones others have the innovative Carbon fibre paper cones.
Specifications
| Article number | 18W/8545K00 |
| EAN | 8785256845408 |
| Woofer Series | Scan-Speak Classic series |
| Woofer Type | Mid-range woofer |
| Nominal Diameter | 7" |
| Power Handling (RMS) | 100 Watts |
| Power Handling (max) | 170 Watts |
| Impedance (Z) | 8 Ω |
| Sensitivity (SPL at 1m / 2.83V) | 87.5 dB |
| Voice Coil Diameter | 42 mm |
| DC Resistance (Re) | 5.5 Ω |
| Voice Coil Inductance (Le) | 0.4mH |
| Resonant Frequency (Fs) | 28 Hz |
| Mechanical Q (Qms) | 5.20 |
| Electromagnetic Q (Qes) | 0.30 |
| Total Q (Qts) | 0.28 |
| Diaphragm Mass Inc. Airload (Mms) | 20.5 g |
| Mechanical Compliance of Suspension (Cms) | 1.58 mm/N |
| Surface Area of Cone (Sd) | 145 cm2 |
| BL Product (BL) | 8.2 Tm |
| Compliance Equivalent Volume (Vas) | 46.4 L |
| Maximum Linear Excursion (Xmax) | 3.25 mm |
| Overall Outside Diameter | 136 mm |
| Article number | 18W/8545K00 |
| EAN | 8785256845408 |
Additional information
| Woofer Series | Scan-Speak Classic series |
|---|---|
| Woofer Type | Mid-range woofer |
| Nominal Diameter | 7″ |
| Power Handling (RMS) | 100 Watts |
| Power Handling (max) | 170 Watts |
| Impedance (Z) | 8 Ω |
| Sensitivity (SPL at 1m / 2.83V) | 87.5 dB |
| Voice Coil Diameter | 42 mm |
| DC Resistance (Re) | 5.5 Ω |
| Voice Coil Inductance (Le) | 0.4mH |
| Resonant Frequency (Fs) | 28 Hz |
| Mechanical Q (Qms) | 5.20 |
| Electromagnetic Q (Qes) | 0.30 |
| Total Q (Qts) | 0.28 |
| Diaphragm Mass Inc. Airload (Mms) | 20.5 g |
| Mechanical Compliance of Suspension (Cms) | 1.58 mm/N |
| Surface Area of Cone (Sd) | 145 cm2 |
| BL Product (BL) | 8.2 Tm |
| Compliance Equivalent Volume (Vas) | 46.4 L |
| Maximum Linear Excursion (Xmax) | 3.25 mm |
| Overall Outside Diameter | 136 mm |
