Scan-Speak Silver Series 10M/4614G06 Car Mid-range Woofer
€159.95
Our SILVER SERIES are specially selected units from Scan-Speak’s well-known home audio speakers. Which have been optimized for automotive use. This series enables audiophiles to experience in their vehicle the – TRUE TO LIVE – that they enjoy from their high-end home audio system.
Available on backorder
Highlights
- Very wide Frequency Range
- Coated NRSC Fibre Glass Cone (patent)
- Compact Size, Neo magnet, Alu. Chassis
- High Sensitivity 88dB / 2,83V
- SBR Rubber Surround
- Copper Cap on Pole Piece
Product details

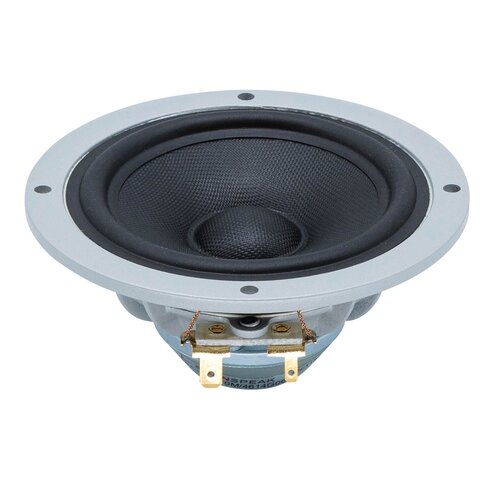

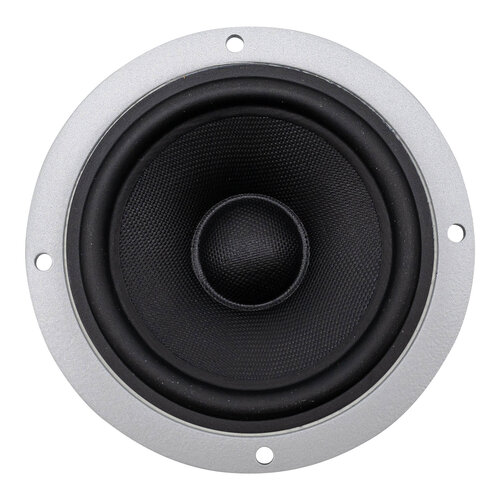

Scan-Speak Silver Series 10M/4614G06 Car Mid-range Woofer
The Scan-Speak Silver Series 10M/4614G06 is a 3.5-inch midrange driver that is designed for use in car audio systems. It features a coated NRSC fiberglass cone, a copper-capped pole piece, an SBR rubber surround, and an aluminum chassis. The 10M/4614G06 has a frequency response of 180 Hz to 10 kHz, a sensitivity of 90 dB/2.83 V, and an impedance of 4 ohms.
This driver is known for its accurate and detailed sound reproduction. It has a smooth, wide frequency response that makes it well-suited for a variety of musical genres. The 10M/4614G06 also has a high sensitivity, which means that it can be driven by a relatively low-powered amplifier.
Specifications
| Article number | 10M/4614G06 |
| EAN | 8785256848256 |
| Woofer Type | Midrange woofer Automotive |
| Nominal Diameter | 100 mm |
| Power Handling (max) | 125 Watt |
| Impedance (Z) | 4 Ohm |
| Sensitivity (SPL at 1m / 2.83V) | 88 dB |
| Frequency Response | 100-12000 Hz |
| Voice Coil Diameter | 20 mm |
| DC Resistance (Re) | 3.2 Ohm |
| Voice Coil Inductance (Le) | 0.1 mH |
| Resonant Frequency (Fs) | 110 Hz |
| Mechanical Q (Qms) | 3.26 |
| Electromagnetic Q (Qes) | 0.63 |
| Total Q (Qts) | 0.53 |
| Diaphragm Mass Inc. Airload (Mms) | 3 g |
| Mechanical Compliance of Suspension (Cms) | 1.1 mm/N |
| Surface Area of Cone (Sd) | 36 cm2 |
| BL Product (BL) | 3.2 Tm |
| Compliance Equivalent Volume (Vas) | 1.3 Litres |
| Maximum Linear Excursion (Xmax) | 2.6 mm |
| Driver's Mechanical Losses (Rms) | 0.64 kg/s |
| Basket / Frame Material | Aluminium |
| # Mounting Holes | 4 |
| Mounting Hole Diameter | 3.8 mm |
| Vented Volume | 1.5 Litres |
| plus | Optimized for automotive use |
