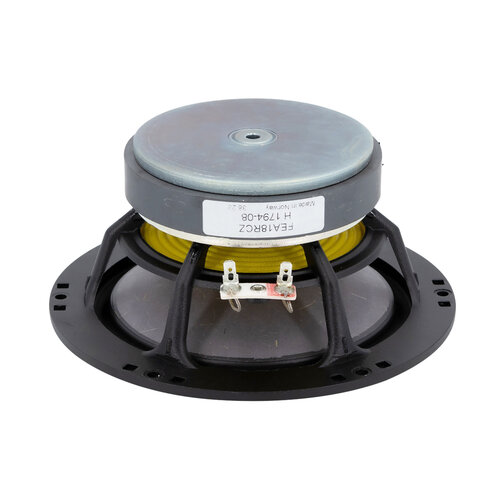

SEAS Prestige FEA18RCZ – H1794-08 Full-range Woofer
€182.95
The SEAS FEA18RCZ – H1794-08 Full-range Woofer is a high-performance speaker driver that offers excellent efficiency and extended bandwidth in a compact package. It features a blue-gray paper cone with papyrus fibers, a high frequency cone directly coupled to the voice coil, a flexible surround made from a low-loss rubber material, a large spider, a heat resistant, non-conductive glass fiber coil former, and a large ferrite ring magnet.
Available on backorder
Highlights
- Excellent efficiency
- Extended bandwidth
- Durable construction
- Good value for money
Product details
SEAS Prestige FEA18RCZ – H1794-08 Full-range Woofer
The SEAS Prestige FEA18RCZ is a 7.0″ full-range driver that is designed for high-end audio applications. It features a blue-grey paper cone with papyrus fibers, a large ferrite magnet system, and a heat-resistant, non-conductive glass fiber coil former. The FEA18RCZ has a frequency response of 45-20,000 Hz, an impedance of 8 ohms, and a sensitivity of 89.7 dB. It is rated for a maximum power of 110 watts.
The FEA18RCZ is a well-balanced driver that is capable of producing a wide range of frequencies with good clarity and detail. It is also relatively efficient, making it a good choice for driving smaller amplifiers.
Specifications
| Article number | FEA18RCZ |
| EAN | 8785256848720 |
| Woofer Series | Prestige |
| Woofer Type | Full Range |
| Nominal Diameter | 6.5 " | 176 mm |
| Power Handling (RMS) | 40 W |
| Power Handling (max) | 110 W |
| Impedance (Z) | 8 Ω |
| Sensitivity (SPL at 1m / 2.83V) | 89.7 dB |
| Frequency Response | 45 – 20000 Hz |
| Voice Coil Diameter | 26 mm |
| Magnet Weight | 0.6 kg |
| DC Resistance (Re) | 5.7 Ω |
| Voice Coil Inductance (Le) | 0.49 mH |
| Resonant Frequency (Fs) | 42 Hz |
| Mechanical Q (Qms) | 6.29 |
| Electromagnetic Q (Qes) | 0.42 |
| Total Q (Qts) | 0.39 |
| Diaphragm Mass Inc. Airload (Mms) | 12.1 g |
| Mechanical Compliance of Suspension (Cms) | 1.19 mm/N |
| Surface Area of Cone (Sd) | 136 cm² |
| BL Product (BL) | 6.6 N/A |
| Compliance Equivalent Volume (Vas) | 31 L |
| Maximum Linear Excursion (Xmax) | 3 mm |
| Driver's Mechanical Losses (Rms) | 0.51 Ns/m |
| Cone / Diaphragm Material | Paper |
| Surround Material | Rubber |
| Voice Coil Former | Glass fibre |
| Basket / Frame Material | Injection moulded zinc |
| Overall Outside Diameter | 176.4 mm |
| Overall Depth | 73.0 mm |
| Baffle Cutout Diameter | 145.2 mm |
| Bolt Circle Diameter | 166 mm |
| # Mounting Holes | 6 |
| Mounting Hole Diameter | 5.0 mm |
