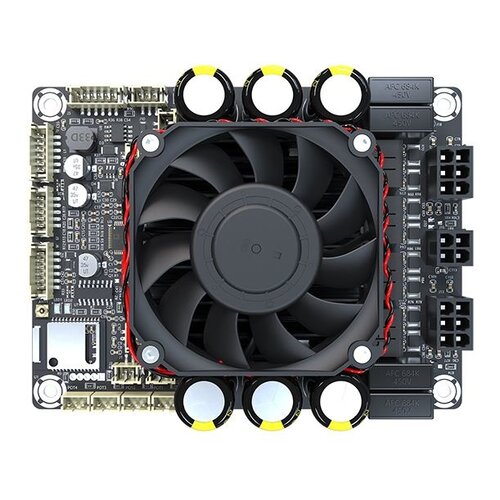

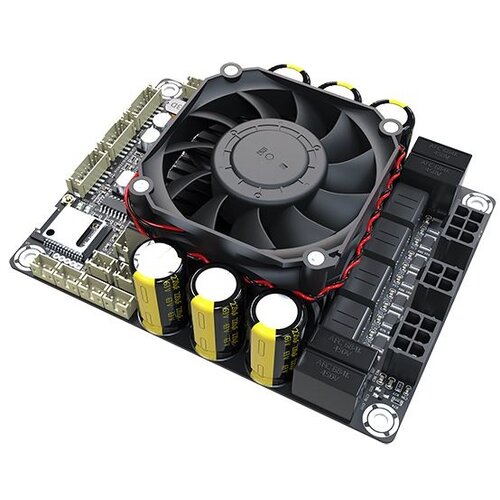

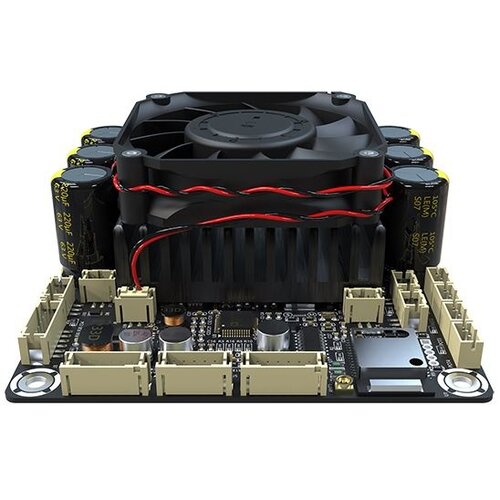

Sure Electronics AA-JA33286 – JAB5 4×100 W Class D Amplifier Module
€83.95
JAB5 is a 4CH audio amplifier board integrated with Bluetooth 5.0 (supporting aptX HD) and ADAU1701 DSP, offering a real all-in-one audio solution for customers.
1 in stock
Highlights
- 20.3cm x 9.14cm PCB Size
- DSP & Bluetooth 5.0 Integrated
- Power Management Circuit
- Signal Level Sensor System
- I2S Input & Line Input Supported
- I2S Output Supported
- Supporting 4.0 / 2.1 / 2.0 Mode
- Supporting cascading with another JAB5 for 8 x 100W
- Bluetooth Pairing Cancellation
- Four External Potentiometers Control
- Bluetooth LED Indicator
- Signal Detection LED Indicator
- Supporting ICP5 for Programming and APP / PC UI Control
Product Details
AA-JA33286 ADAU1701 DSP Bluetooth 5.0 JAB5 4×100 W Class D Amplifier Module
JAB5 delivers 100W output power per channel into a 6Ohm load. Besides Bluetooth input, JAB5 supports line input and I2S input. Thanks to the equipped ADAU1701 DSP, JAB5 supports programming with SigmaStudio, APP control and PC UI control after connection with WONDOM ICP5 or higher version(s), through which, you can adjust volume, gain, frequency and EQ setting to customize your own audio. In addition to 4.0 mode (4 x 100W), JAB5 supports configuration as 2.1 mode (2 x 100W + 1 x 200W), 2.0 / 0.2 mode (2 x 200W), applicable for various audio projects. Furthermore, JAB5 can cascade with another JAB5 to build audio 8.0 or other systems. Wireless audio input, integrated ADAU1701 DSP, multiple output modes and high quality audio performance make JAB5 perfectly suitable for Bluetooth speakers, home audio, garden audio, digital crossover and DIY audio applications. A DC10V-39V power supply is required.
Specifications
| Article number | AA-JA33286 |
| EAN | 6959687300047 |
| Rated power output | 100 Watts @36V, 1kHz |
| Minimum load | 6 ohms |
| Efficiency | 89.5 % |
| Signal-to-noise ratio (SNR) | 97 dB (2x50W @ 6 Ohm, THD+N = 1%, 26 dB) |
| Distortion | 0.04 % (5W @6 Ohm, 1kHz, 26dB), 0.07 % (%W @ 6 Ohm, 1 kHz, 26dB) |
| Frequency response | 20 – 20,000 Hz |
| Gain | -60-6.5 dB (@6 Ohm, 1kHz) |
| Circuit Topology | TDA749x |
| Speaker output channels | 4 |
| Input connection type | 3.5mm line input, I2S input |
| DSP function | check |
| Power Requirements | 10V-39V |
| Dimensions (L x W x H) | 121.92mm x 91.44mm |
