Tectonic Elements TEAX14C02-8 sound exciter
€9.95
Tectonic’s 14 mm, 8 ohm TEAX14C02-8 exciter is designed be used with tablet PCs, eBooks, and appliance control panels. Bending waves, and sound, generated by the TEAX14C02-8 brings life to devices.
25 in stock
Highlights
- Larger size for larger surfaces and 2 watt RMS power handling
- Great for with tablet PCs and e-Book readers
Product details

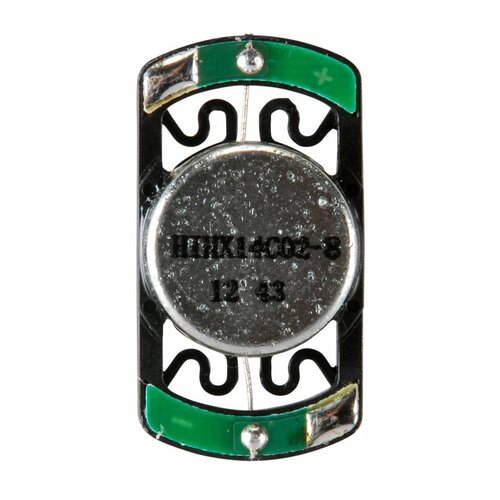

Tectonic Elements TEAX14C02-8 14mm 2W Exciter
Designed to be used with tablet PCs, eBooks, and appliance control panels, the bending waves generated by the TEAX14C02-8 brings life to devices. Adhesive is pre-applied for permanent device attachment, and the 9.55 mm (3/8″) thickness is enhanced by a neodymium motor to accommodate into existing designs.
A great field of application for this exciter is so-called DML or flat-panel speakers. DML stands for Distributed Mode Loudspeakers and is a term for speakers that catch the eye with their incredibly slim design.
Specifications
| Article number | TEAX14C02-8 |
| EAN | 0848864000633 |
| Type | Full-Range Exciter |
| Power Handling (RMS) | 2 Watts |
| Power Handling (max) | – |
| Impedance | 8 ohms |
| Frequency Response | 300 – 20000 Hz |
| Resonant Frequency (Fs) | 600 Hz |
| DC Resistance (Re) | 7.8 ohms |
| Voice Coil Inductance (Le) | 0.13 mH |
| Total Q (Qts) | – |
| Diaphragm Mass Inc. Airload (Mms) | 355 mg |
| Mechanical Compliance of Suspension (Cms) | 0.20e-3 m.N-1 |
| BL Product (BL) | 2.4 Tm |
| Voice Coil Diameter | 14 mm |
| Overall Outside Diameter | – |
| Overall Depth | 9.85 mm |
| Overall Dimensions (L x W x H) | 37 x 20 x 9.85 mm |
| Mounting surface dimensions | – |

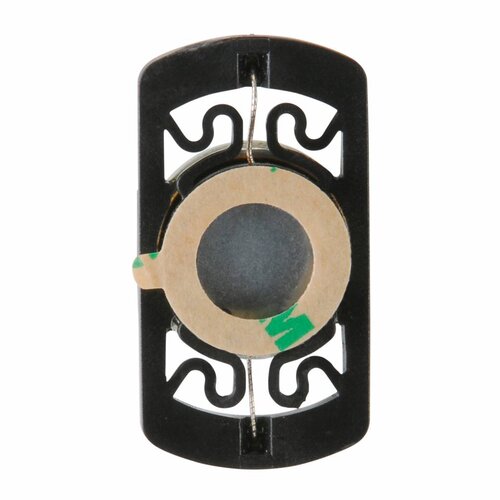

| Mounting type | 3M VHB adhesive pre-applied |
| Weight | 12.8 grams |
| Article number | TEAX14C02-8 |
| EAN | 0848864000633 |
| Power Handling (RMS) | 2 Watts |
|---|---|
| Impedance | 8 ohms |
| Frequency response | 300 – 20000 Hz |
| Resonant Frequency (Fs) | 600 Hz |
| DC Resistance (Re) | 7.8 ohms |
| Voice Coil Inductance (Le) | 0.13 mH |
| Diaphragm Mass Inc. Airload (Mms) | 355 mg |
| Mechanical Compliance of Suspension (Cms) | 0.20e-3 m.N-1 |
| BL Product (BL) | 2.4 Tm |
| Voice Coil Diameter | 14 mm |
| Overall Depth | 9.85 mm |
| Overall Dimensions (L x W x H) | 37 x 20 x 9.85 mm |
| Mounting type | 3M VHB adhesive pre-applied |
| Weight | 12.8 grams |
