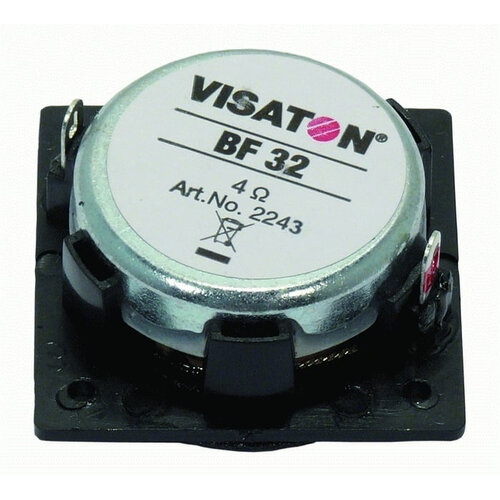

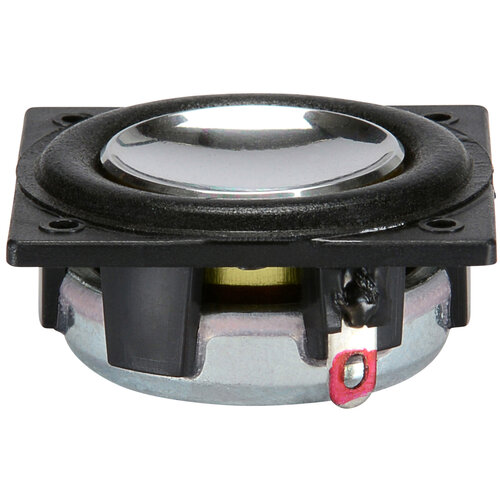

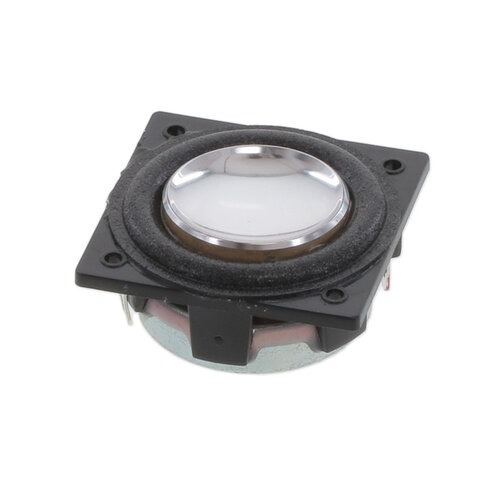

Visaton BF 32 – 4 1,3” Full-Range Neodymium Driver 4 Ohm

Highlights of the Visaton BF 32 – 4

• 3.2 cm full-range speaker with wide, balanced frequency response
• Powerful neodymium drive in a compact 28 g design
• 150 to 20000 Hz frequency response with very good low-range reproduction
• Square basket with four mounting holes for easy installation
• Silver-coloured membrane and solder lug connections

Product details Visaton BF 32 – 4

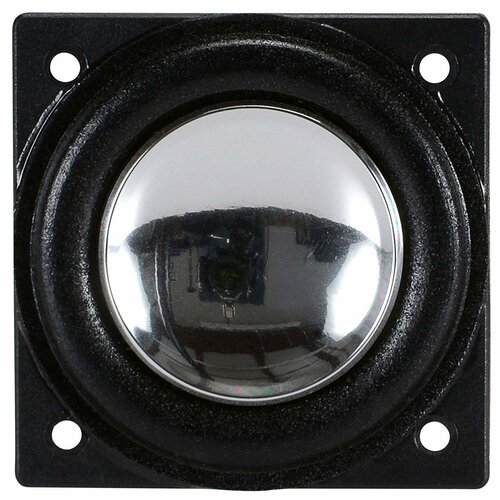

Visaton BF 32 – 4 3.2 cm (1.3″) Full-Range Neodymium Driver 4 Ohm

The Visaton BF 32 – 4 is designed for applications where installation space is limited but speech and music still need to be reproduced clearly. As a compact micro speaker, it combines a small 3.2 cm format with a wide and balanced frequency response from 150 to 20000 Hz.

Its powerful neodymium drive helps deliver very good low-range reproduction for its size, while the 78 dB mean sound pressure level supports efficient playback in compact electronic devices. The driver is rated at 2 W with a maximum power handling of 5 W and has a resonance frequency of 280 Hz.

The square basket with four mounting holes makes the BF 32 – 4 easy to integrate into slim product designs. A 31.5 mm cut-out diameter, solder lug connections and a low net weight of 28 g make it a practical choice when selecting audio components for space-conscious builds.

Typical applications include flat TVs, PC screens, info terminals and other compact devices for speech and music reproduction. The operating temperature range of -25 to 70 °C further supports use in a variety of compact equipment and installation environments.
