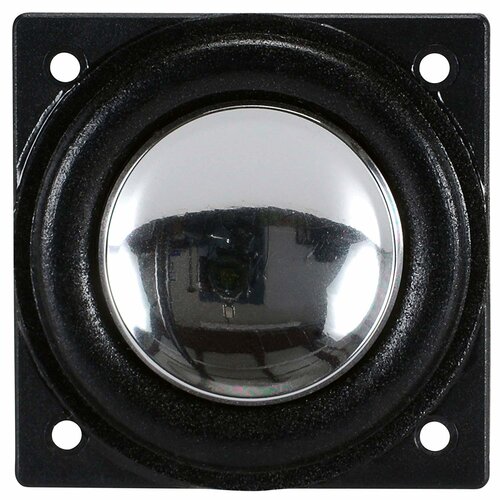

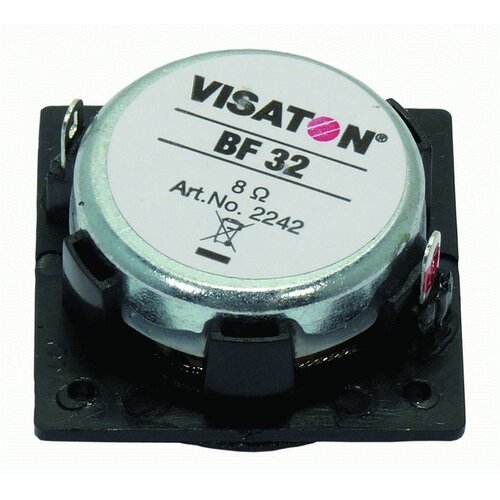

Visaton BF 32 – 8 1,3” Full-Range Neodymium Driver 8 Ohm

Highlights of the Visaton BF 32 – 8

• 32 mm full-range speaker with wide, balanced frequency response
• 150 to 20,000 Hz frequency range with very good low-range reproduction for its size
• Powerful neodymium driver system in a compact format
• Square basket with four mounting holes for easy installation
• 8 Ohm nominal impedance with 2 W rated power and 5 W maximum power
• Solder lug connections and low 28 g net weight

Product details Visaton BF 32 – 8

Visaton BF 32 – 8 32 mm Full-Range Neodymium Driver 8 Ohm

The Visaton BF 32 – 8 is a compact micro speaker developed for applications that require both minimal dimensions and reliable speech and music reproduction. Its 32 mm full-range design offers a wide and balanced response from 150 to 20,000 Hz, making it suitable for small-format audio systems where clarity and usable low-range output are important.

A powerful neodymium motor helps the BF 32 – 8 deliver strong performance from a very small chassis. With a mean sound pressure level of 78 dB at 1 W/1 m, 2 W rated power and 5 W maximum power, this driver is well suited for compact audio components and embedded sound solutions.

The square basket includes four mounting holes for straightforward installation, while the required cut-out diameter is 31.5 mm. Solder lug terminals provide a simple electrical connection, and the silver-coloured membrane gives the driver a clean, technical appearance.

Typical applications include flat-panel TVs, PC displays, info terminals and other compact devices for speech and music playback. With an 8 Ohm nominal impedance, 20 mm voice coil diameter and a net weight of only 28 g, the BF 32 – 8 is a practical choice for slim speaker projects and space-constrained audio designs.
